Premium 4 CH AI MDVR telematics solution

Project

Parameters

Performance indicators

system

System

Linux operating system

Language

Chinese/English

Interface

Graphical menu operation interface

Audio and video

Video input

4 CH 1080P AHD/TVI/CVI/CVBS

Video output

VGA+CVBS(or AHD)

Audio input

5 CH

Audio output

2analog output

Video formats

PAL/NTSC

Video compression

H.264/H.265

Video resolution

1080P/720P/960H/D1/CIF

Audio formats

G.711A  G.711U  G.726

Video and playback

Storage

HDD & SD card

Video query

Search by channel, video type

Video playback

Local Multichannel

Software upgrade

Local backup

Support SD card and USB flash drive

Upgrade mode

Manual upgrade, automatic upgrade, remote upgrade

Upgrade way

USB , SD card, network

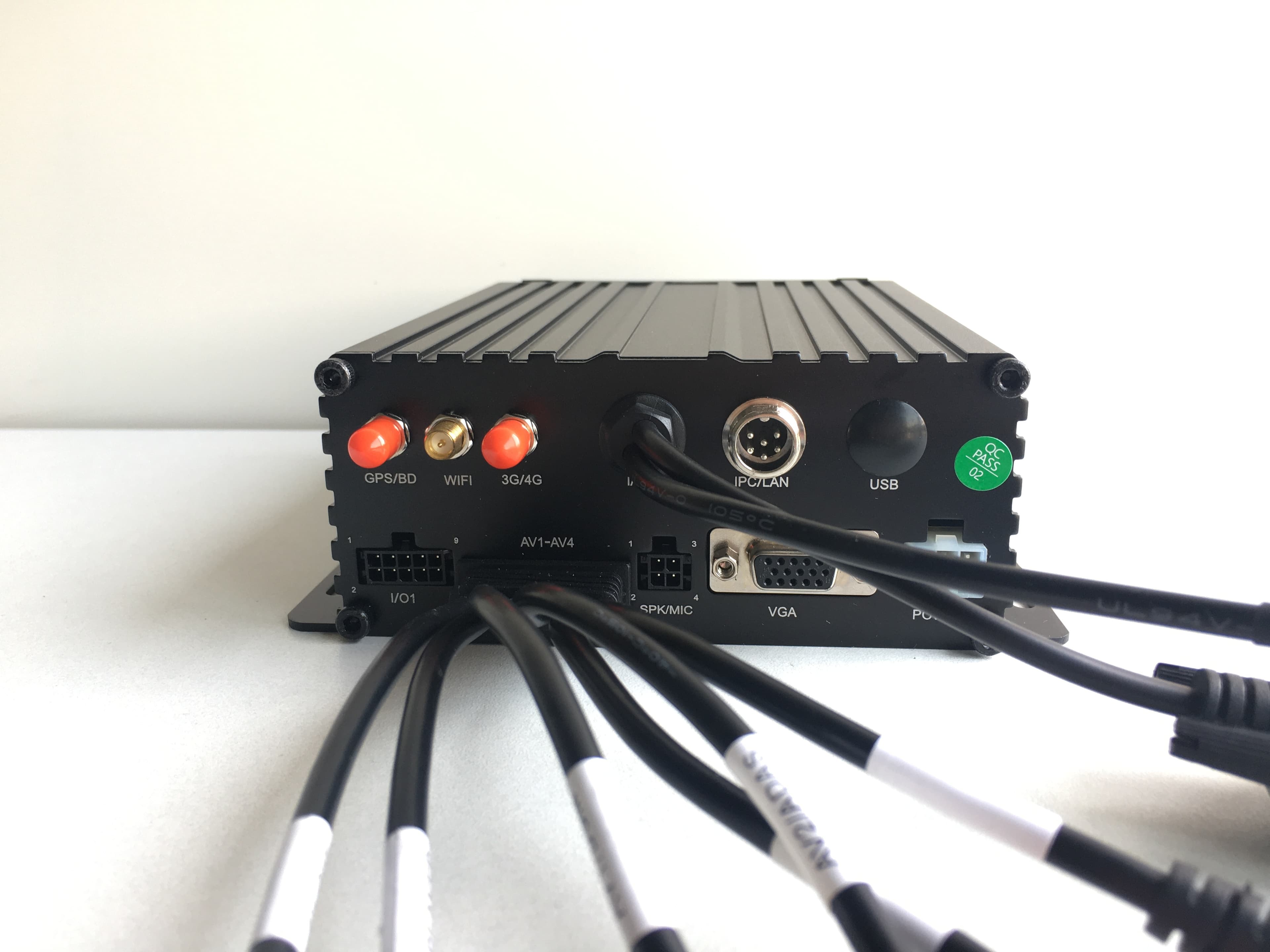

Physical interface

Audio/Video input

5 h 4CH M12

Audio/Video output

1 VGA and 1 CVBS(Or AHD)

Power interface

Power/Ignition signal

Alarm input

9 CH input

Alarm output

2 outputs

Pulse

1

RS232

1

TTL

1

RS485

1

CAN

1

1-WIRE

1

MIC/SPK

4PIN MIC/SPK

LED light

PWR/RUN

IPC

1 M12-6Pin

SD card

1* SDXC

HDD

1

Disk lock

1

Wireless interface

GNSS module

GPS/BD/GLONASS

Wifi

2.4GHz

3G/4G/5G

4G Default (5G Optional)

Active safety interface

ADAS interface

1 CH ADAS, 1080P/720P

    DSM interface

1 CH DSM, 720P

BSD interface

1 CH BSD, 1080P/720P

Other

Power input

DC9V- 36V

Storage capacity

1080P   622MB/H/CH  H.265

1080P   1.2G/H/CH    H.264

Typical power consumption

Power consumption: AVG 9W (excluding peripherals)

Static power consumption: 12V@3mA

Load capacity

Camera + Screen: 12V@4A (MAX)

IPC: 12V@1A(MAX)

Model

HDC-A120

Image Sensor

1/2.9” GC2053 CMOS Sensor

Resolution

2.0MP (1920×1080P)

Minimum Illumination

0.01Lux, 0 Lux with IR

Night Vision

Yes (12 infrared lamps, 5m IR view distance)

Audio

Built-in HD microphone for audio recording

Lens Type

M12

SNR

≥42dB

Protection Grade

IP66 (weatherproof, dustproof)

Operating Temperature

-20°C to 70°C

Relative Humidity

≤90%

Connector

4 PIN aviation connector

Power Supply

DC12V

Power Consumption

Rated 2.5W (IR open)

Dimensions

φ65 (Bottom diameter) * 57 mm

Model

HDC-C120

Image Sensor

2.0MP CMOS Sensor

Resolution

1920×1080P (Full HD)

Minimum Illumination

0.01Lux, 0 Lux with IR

Lens Type

M12

Infrared

18 infrared lamps, 10 meters IR view distance

Audio

No

Connector

4 PIN Aviation Connector

SNR

≥48dB

Housing Color

Black

Protection Grade

IP68 (Waterproof, Dustproof)

Operating Temperature

-20°C to 70°C

Relative Humidity

≤90%

Lens Focus

2.8mm/3.6mm (Default 2.8mm)

Input Voltage

DC12V

Power Consumption

Rated 3W (IR open)

Dimensions

70mm × 50mm × 70mm
