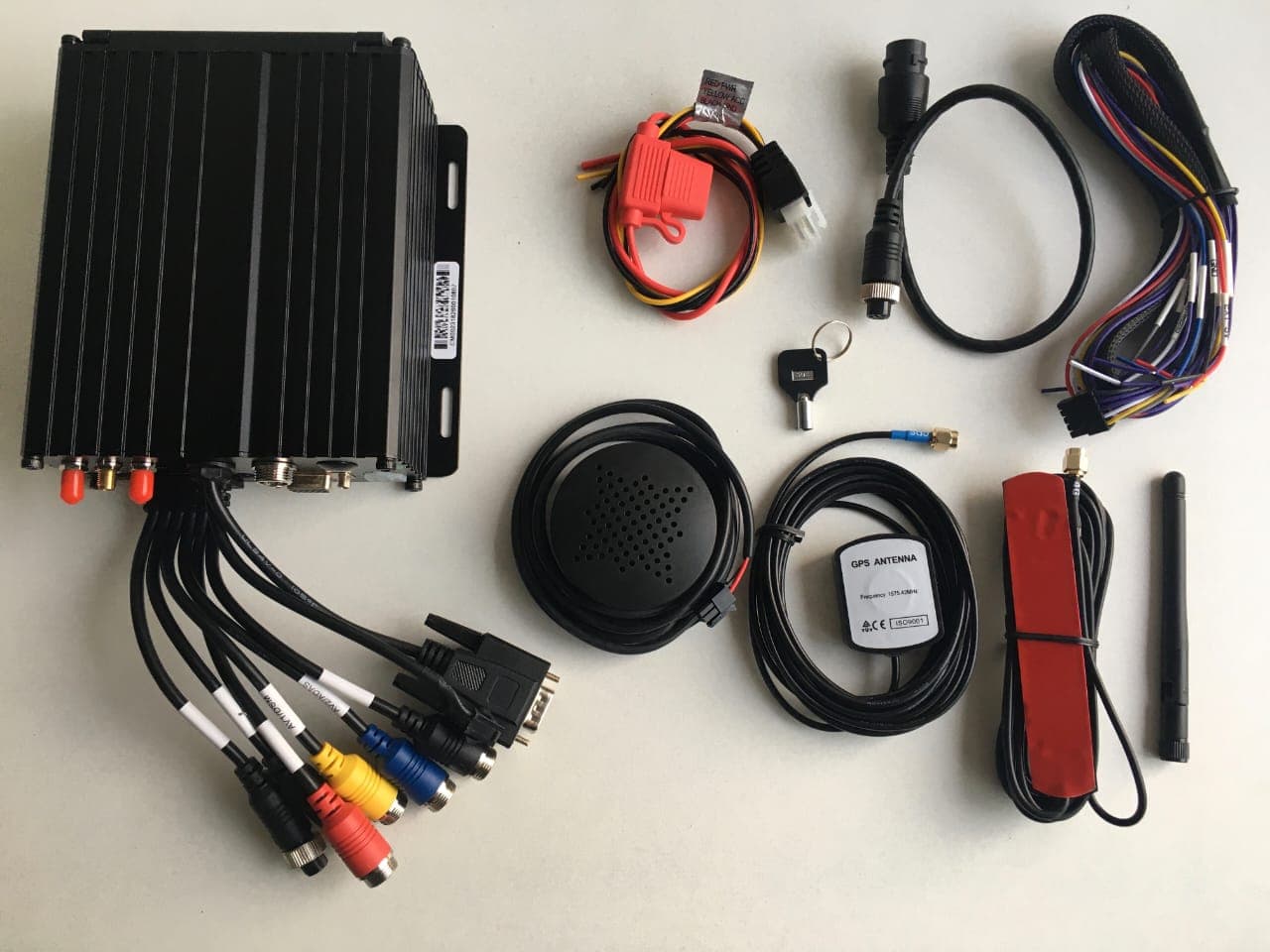

Ultimate 8CH AI MDVR Package with Artificial Intelligence (AI)
The package is tailored for a client who needs more eyes on the road, combined with AI features

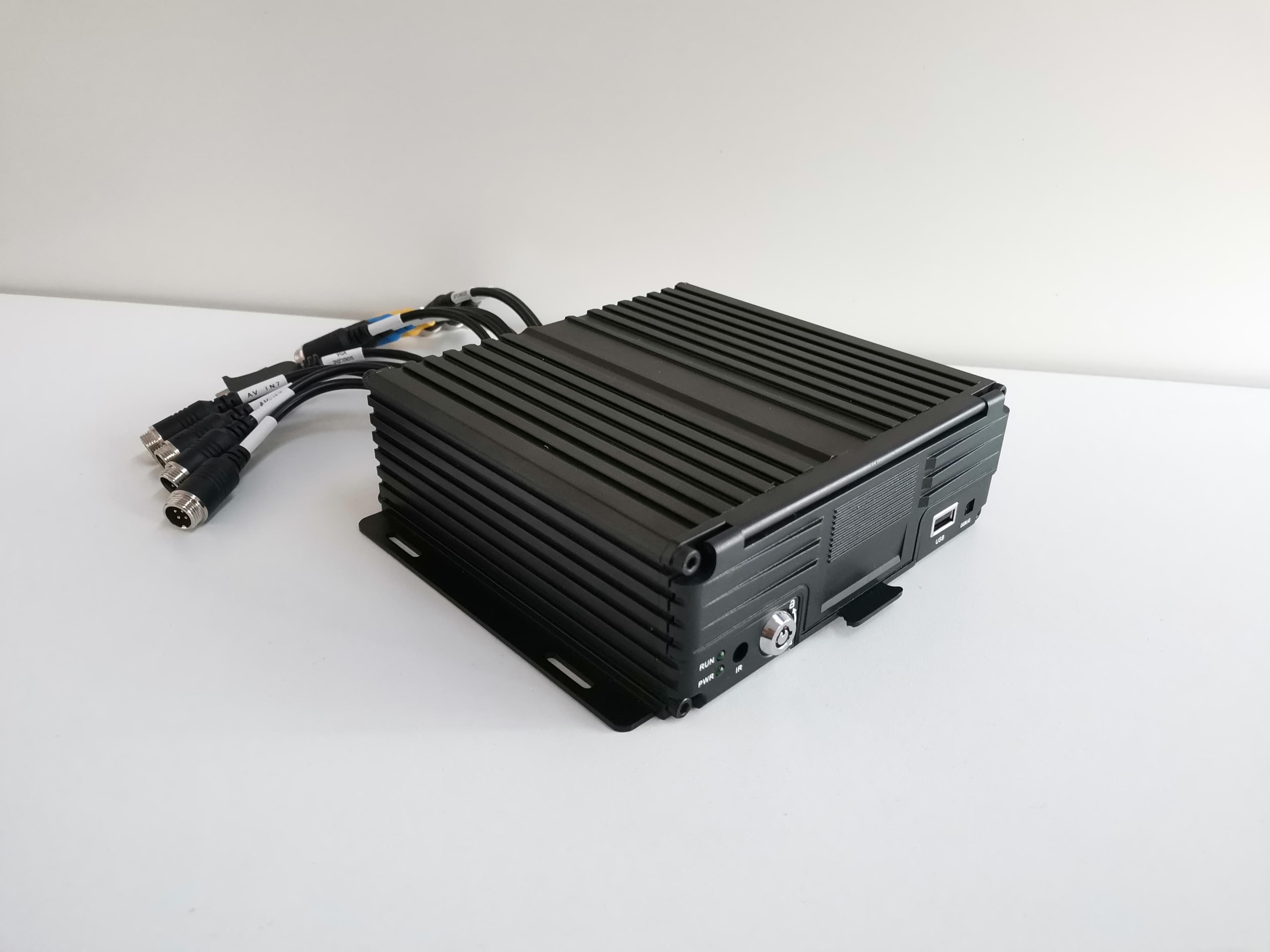

Premium 8CH AI with Hard drive and SD card storage MDVR
Parameters:
Technical parameter: | |||
Item | Device parameter | Performance | |
system | System | Embedded Linux operating system | |
Language | Chinese/English Etc... | ||
Interface | Graphical menu operation interface, mouse operation | ||
Audio and video | Video input | 8 CH 1080P AHD/TVI/CVI/CVBS | |
Video output | VGA+CVBS | ||
Audio input | 8 CH | ||
Audio output | 1 channel analog output | ||
Video formats | PAL/NTSC | ||
Video compression | H.264/H264+/H.265/H265+ | ||
Video resolution | 1080P/720P/960H/D1/CIF | ||
Video quality | Grades 1 to 6 | ||
Audio formats | G711A、G711、G.726、MG.726、ADPCM、IMA | ||
Video and playback | Storage | HDD/SSD& SD | |
Video query | Search by channel, video type and alarm type | ||
Video playback | Local 4 CH | ||
Local backup | Supports SD cards and USB drives | ||
Physical interface | Upgrade mode | Manual upgrade, automatic upgrade, remote upgrade | |
Upgrade way | USB , SD card, network | ||
Audio/Video output | 1ch VGA video output, 1ch M12 aviation/4PIN CVBSAV output | ||
Power interface | Power/ignition signal | ||
Alarm input | 7ch inputs (Positive/Negative trigger optional) | ||
Alarm output | 2ch outputs, could drive relay(＜150mA) | ||
ADC input | 4ch | ||
The speed pulse | 1 | ||
RS232 | 2 | ||
TTL | 1 | ||
RS485 | 1 | ||
CAN | 1 | ||
Other interface | LED light | PWR/RUN | |
HDD/SSD interface | 1* SATA interface, 2.5inch HDD/SSD | ||
SD card | 1*SDXC card slot, support max 512 GB storage, | ||
IPC | 2*6 Pin M-12 aviation interface | ||
Disk lock | 1 | ||
The wireless interface | GNSS | GPS/BD/GLONASS | |
Wifi | Optional WIFI module, support 802.11b/g/n, 2.4GHz | ||
3G/4G | 1*SMA,LTE/HSPA/WCDMA,4G module, support all 4G frequency band | ||
Active safety interface | ADAS interface | 1CH ADAS video input,1080P/720P(AV21) | |
The DSM interface | 1CH DSM video input,1080P/720P(AV1) | ||
BSD interface | Optional 1CH BSD video input,1080P/720P(AV3) | ||
other | The power input | DC: 8V~36V | |
Typical power consumption | Power consumption: AVG 22W (excluding peripherals) | ||
Power output | 5V@500mA | ||
Working Temperature | -20 --- 70℃ | ||
Storage capacity(H.265) | 1080P 0.726G/H/Channel | ||
Hard Disk 2TB
2TB enterprise-grade hard disk for MDVR storage
AHD Dome Camera Interior Camera with audio(x3)
Technical Specifications
Feature | Specification |
|---|---|
Model | HDC-A120 |
Image Sensor | 1/2.9” GC2053 CMOS Sensor |
Resolution | 2.0MP (1920×1080P) |
Minimum Illumination | 0.01Lux, 0 Lux with IR |
Night Vision | Yes (12 infrared lamps, 5m IR view distance) |
Audio | Built-in HD microphone for audio recording |
Lens Type | M12 |
SNR | ≥42dB |
Protection Grade | IP66 (weatherproof, dustproof) |
Operating Temperature | -20°C to 70°C |
Relative Humidity | ≤90% |
Connector | 4 PIN aviation connector |
Power Supply | DC12V |
Power Consumption | Rated 2.5W (IR open) |
Dimensions | φ65 (Bottom diameter) * 57 mm |
Extension Cable 10M(x6)
10-meter extension cable for camera connections
- Complete Solution: Everything you need in one package
- Cost Effective: Save money compared to buying items individually
- Professional Installation: Expert setup and configuration included
- Warranty & Support: Comprehensive coverage and technical assistance
You save KES 500 (1%)
