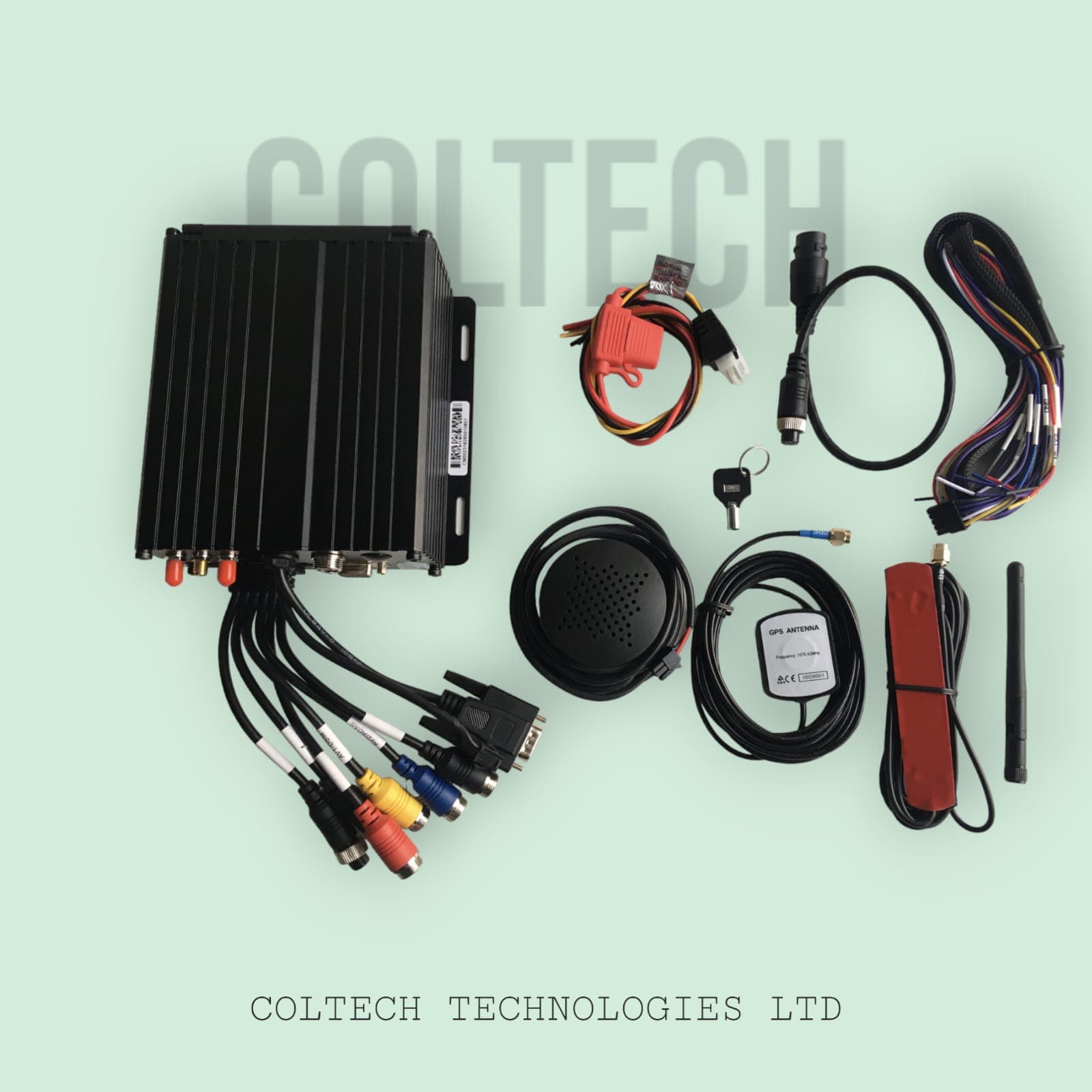

Most economical 4 CH SD MDVR telematics solution
cost-saving live video, audio, and positioning basic functions
Product

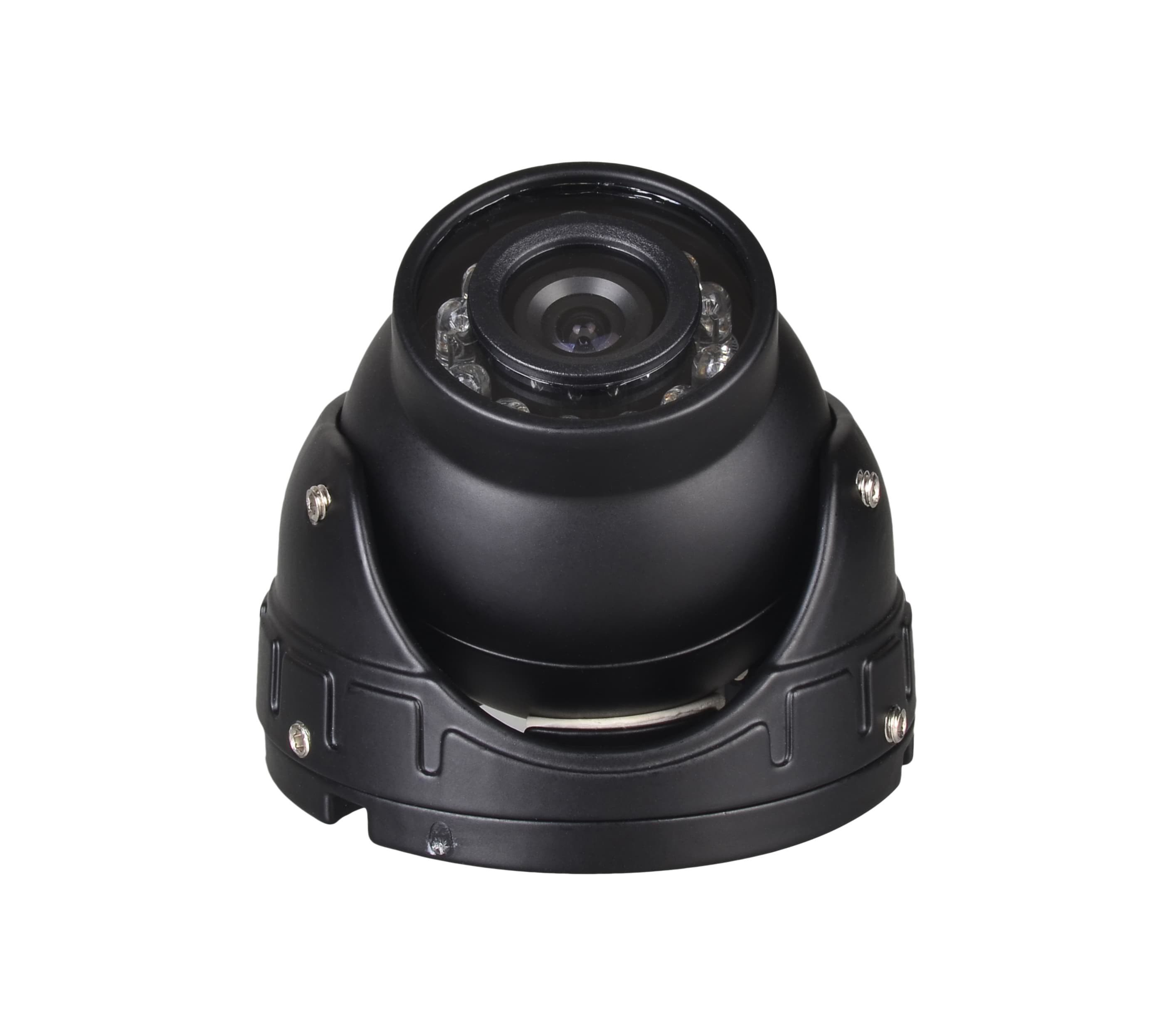

AHD Dome Camera Interior Camera with audio
Technical Specifications
Feature | Specification |
|---|---|
Model | HDC-A120 |
Image Sensor | 1/2.9” GC2053 CMOS Sensor |
Resolution | 2.0MP (1920×1080P) |
Minimum Illumination | 0.01Lux, 0 Lux with IR |
Night Vision | Yes (12 infrared lamps, 5m IR view distance) |
Audio | Built-in HD microphone for audio recording |
Lens Type | M12 |
SNR | ≥42dB |
Protection Grade | IP66 (weatherproof, dustproof) |
Operating Temperature | -20°C to 70°C |
Relative Humidity | ≤90% |
Connector | 4 PIN aviation connector |
Power Supply | DC12V |
Power Consumption | Rated 2.5W (IR open) |
Dimensions | φ65 (Bottom diameter) * 57 mm |
AHD Waterproof Reverse Camera
Technical Specifications
Feature | Specification |
|---|---|
Model | HDC-C120 |
Image Sensor | 2.0MP CMOS Sensor |
Resolution | 1920×1080P (Full HD) |
Minimum Illumination | 0.01Lux, 0 Lux with IR |
Lens Type | M12 |
Infrared | 18 infrared lamps, 10 meters IR view distance |
Audio | No |
Connector | 4 PIN Aviation Connector |
SNR | ≥48dB |
Housing Color | Black |
Protection Grade | IP68 (Waterproof, Dustproof) |
Operating Temperature | -20°C to 70°C |
Relative Humidity | ≤90% |
Lens Focus | 2.8mm/3.6mm (Default 2.8mm) |
Input Voltage | DC12V |
Power Consumption | Rated 3W (IR open) |
Dimensions | 70mm × 50mm × 70mm |
- Complete Solution: Everything you need in one package
- Cost Effective: Save money compared to buying items individually
- Professional Installation: Expert setup and configuration included
- Warranty & Support: Comprehensive coverage and technical assistance
You save KES 7,000 (16%)
