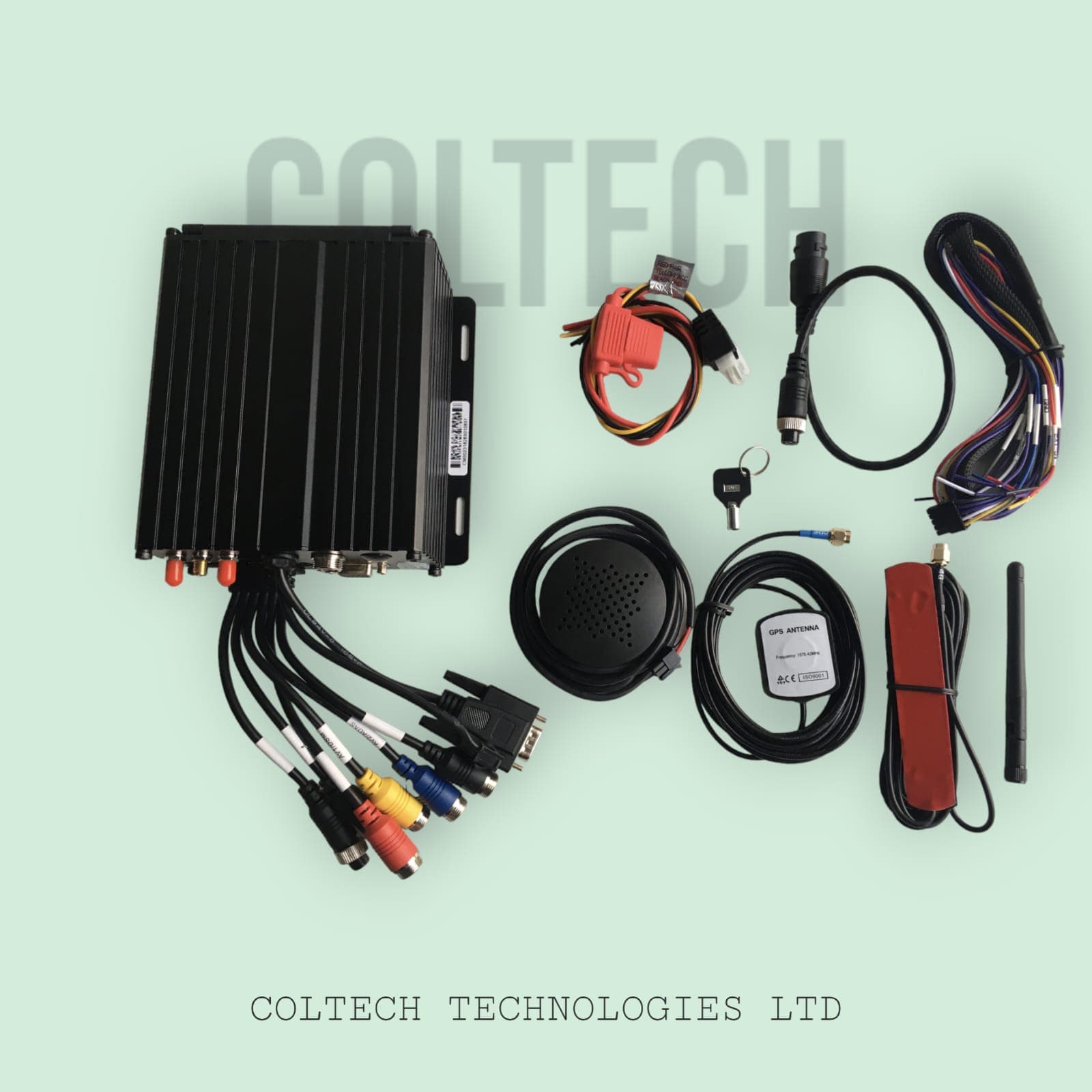

Standard 4 CH Telematics solution

System

Embedded Linux Operating System

Video Inputs

4CH AHD/TVI/CVI/Analog

Video Compression

H.264/H.265

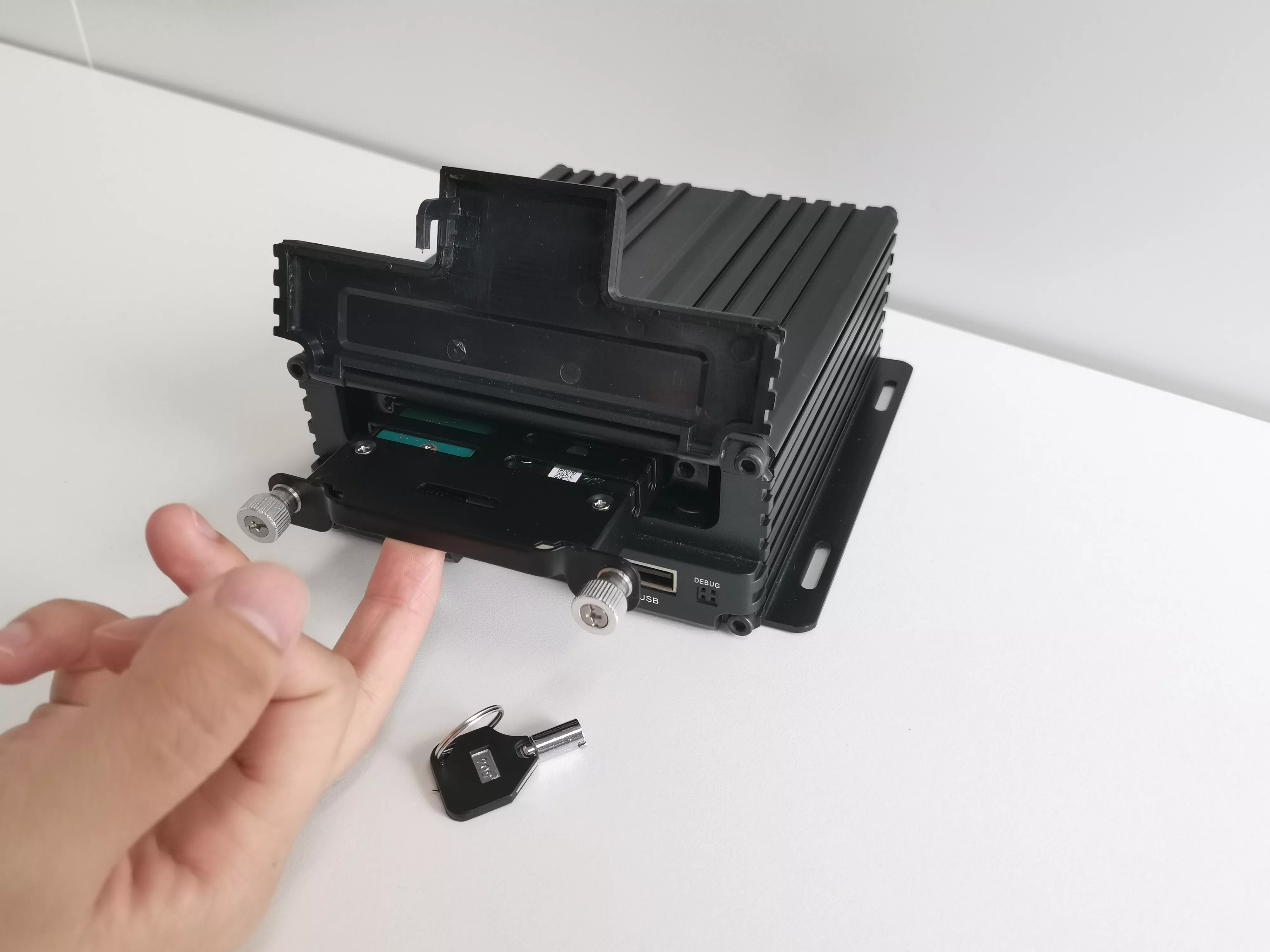

Storage

Supports 512GB SD Card, Up to 2TB HDD

GPS Module

GPS/BD/GLONASS (high sensitivity, fast positioning)

Power Supply

8-36V DC Wide Voltage Range

Video Output

1 CH VGA, 1 CH CVBS AV

Audio

G.711A, G.711U, G.726

Storage Media

SD card + HDD/SSD

Transmission Interface

4G/LTE, WiFi (optional), GPS, Ethernet

Power Consumption

6.24W average (excluding peripherals)

Working Temperature

-20°C to 70°C

Dimensions

162mm × 153mm × 52mm

Video Resolution

1020P, 960H, D1, CIF

Recording Quality

Class 1-6 Optional

Firmware Upgrade

Manual/Automatic/Remote

Model

HDC-A120

Image Sensor

1/2.9” GC2053 CMOS Sensor

Resolution

2.0MP (1920×1080P)

Minimum Illumination

0.01Lux, 0 Lux with IR

Night Vision

Yes (12 infrared lamps, 5m IR view distance)

Audio

Built-in HD microphone for audio recording

Lens Type

M12

SNR

≥42dB

Protection Grade

IP66 (weatherproof, dustproof)

Operating Temperature

-20°C to 70°C

Relative Humidity

≤90%

Connector

4 PIN aviation connector

Power Supply

DC12V

Power Consumption

Rated 2.5W (IR open)

Dimensions

φ65 (Bottom diameter) * 57 mm

Model

HDC-C120

Image Sensor

2.0MP CMOS Sensor

Resolution

1920×1080P (Full HD)

Minimum Illumination

0.01Lux, 0 Lux with IR

Lens Type

M12

Infrared

18 infrared lamps, 10 meters IR view distance

Audio

No

Connector

4 PIN Aviation Connector

SNR

≥48dB

Housing Color

Black

Protection Grade

IP68 (Waterproof, Dustproof)

Operating Temperature

-20°C to 70°C

Relative Humidity

≤90%

Lens Focus

2.8mm/3.6mm (Default 2.8mm)

Input Voltage

DC12V

Power Consumption

Rated 3W (IR open)

Dimensions

70mm × 50mm × 70mm

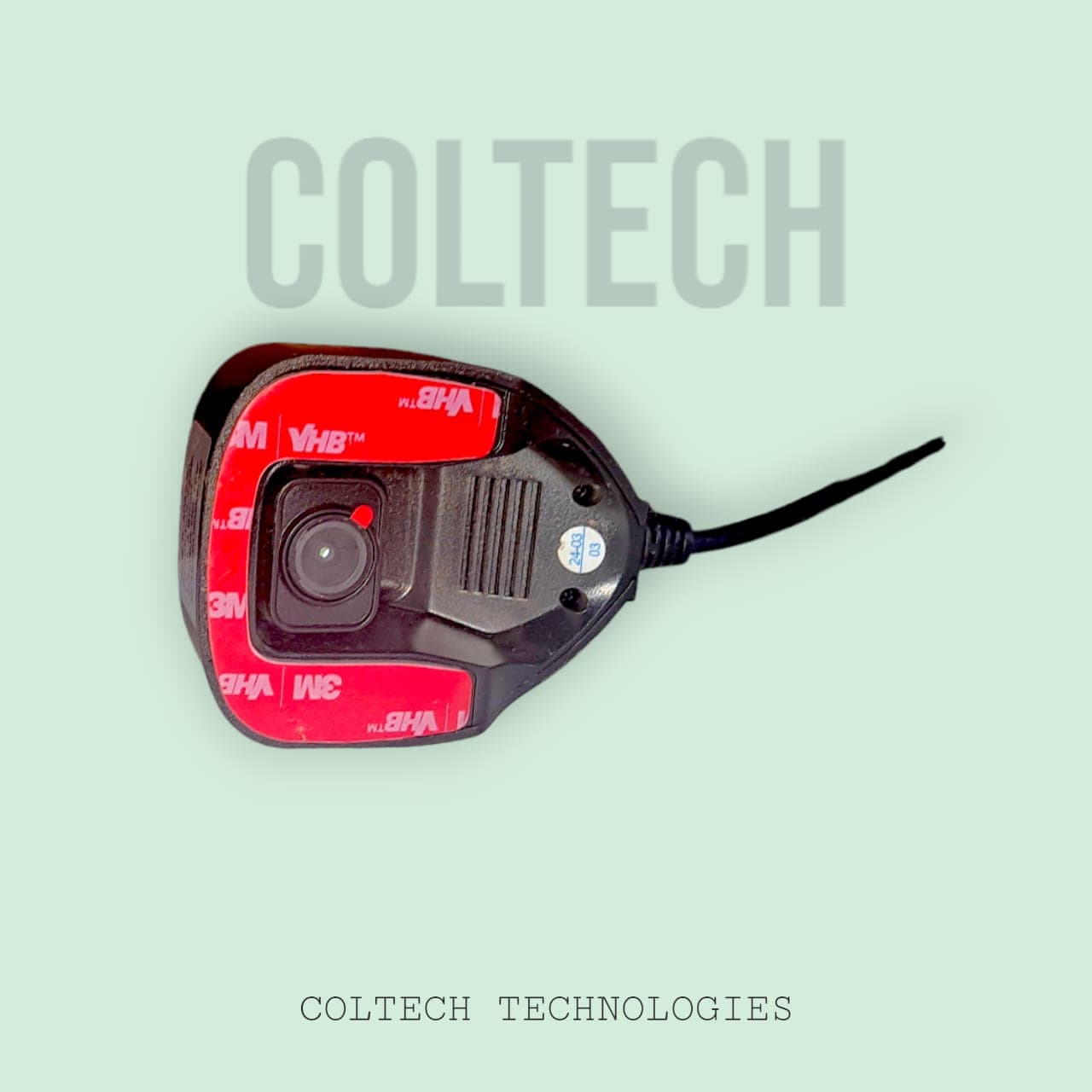

Specifications

Model

TL-ADAS-S5

Name

ADAS Camera

Image Sensor

130W CMOS Sensor

Pixel Size

3.75μm x 3.75μm

Optical Format

1/3"

Image color

Color

Focal Length

3.6 mm

IR

NA

View Angle

D=85° H=60° V=53°

Signal Type

PAL

FPS

25fps

Properties

Temperature

-25℃~75℃

Humidity

≤ 90 %

Voltage

12V DC

Rated power

0.8W

Cable Length

Aviation connector, 2.5m

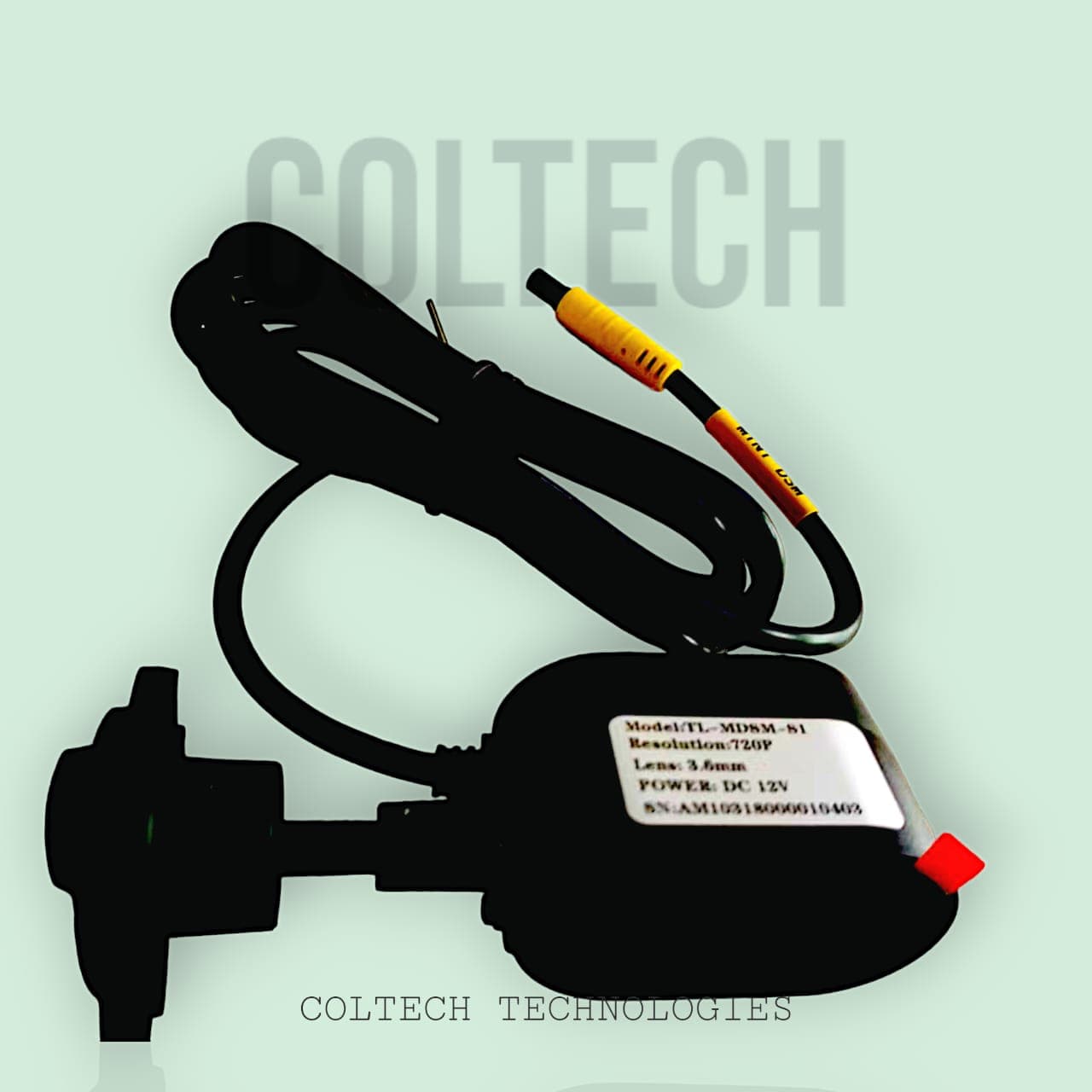

Specifications

Model

CTL-DSM-E1-MIC

Type

DMS Camera

Sensor Type

200W CMOS Sensor

Original Size

2.9μm x2.9 μm

Lens

1/2.7"

Focal Length

6mm

Aperture

F1.8

FOV

D=60° H=49° V=35°

Image Mode

Black & White

Resolution

1280*1080P

Dynamic Range

80dB

Signal to Noise Ratio

39dB

Synchronization

NA

LED

940nm/0.45W

Illuminance

Minimum≤0.01Lux

Audio

Support

Video

AHD

Video format

PAL(Default)

Frame Rate

25fps

Electronic Shutter

AUTO

AGC

AUTO

White Balance

Support

Backlight Compensation

AUTO

Waterproof Level

NA

Humidity

≤ 90 %

Characteristic

Voltage

12V DC

Consumption

1.32W

Length of Tail

3.5m

Temperature Range

-25℃~75℃
