Premium 4CH AI with Hard drive and SD card storage MDVR
The MDVR hardware is a cutting-edge solution designed for logistics operations seeking premium 4-channel surveillance with advanced Artificial Intelligence capabilities. Ideal for fleet management, it features two AI-powered cameras: one for the Advanced Driving Assistance System (ADAS) to warn of forward collisions and another for the Driver Monitoring Solution (DMS) to detect fatigue and distractions. With four high-definition camera channels, it ensures comprehensive vehicle surveillance, while its compact design offers cost-effectiveness for small or starter fleets. Real-time tracking, safety alerts, and long-lasting storage ensure secure video footage for easy retrieval. The MDVR is perfect for companies prioritizing safety, security, and operational efficiency.

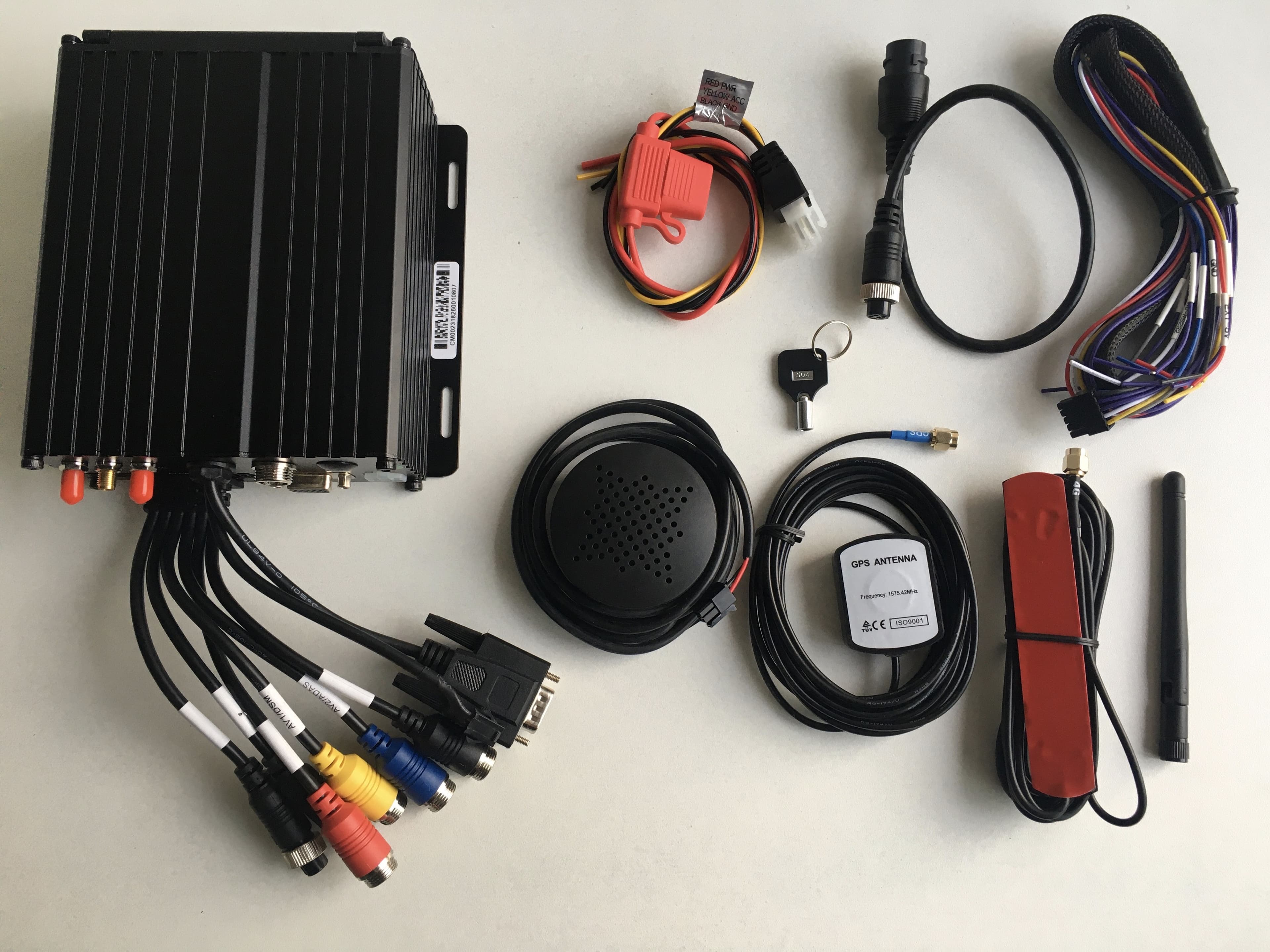

Included in the Box:
4-Channel AI MDVR Black Box
2 AI Cameras (1 × ADAS, 1 × DMS)
Power Cord
Product Use Manual
Speaker
I/O Port Cord
WAN Extension Cable
📦 Package Includes:
- ✓ 4-Channel MDVR Unit
- ✓ FREE 12-month AI License
Features
- GPS Tracking
- AI Driver Monitoring
- ADAS (Advanced Driver Assistance)
- Blind Spot Detection
- Fatigue Detection
- 4G/5G Connectivity
- H.265 Video Encoding
- Multi-Channel Recording
- G-Sensor Monitoring
- HDD/SD Storage
Specifications
- GPS:
- Built-in
- Network:
- 4G LTE
- Storage:
- Up to 2TB HDD / 256GB SD
- Resolution:
- 1080P
- Operating Temp:
- -20°C to 70°C
Documents & Downloads
Description
Product Technical Parameters:
Project | Parameters | Performance indicators |
system | System | Linux operating system |
Language | Chinese/English | |
Interface | Graphical menu operation interface | |
Audio and video | Video input | 4 CH 1080P AHD/TVI/CVI/CVBS |
Video output | VGA+CVBS(or AHD) | |
Audio input | 5 CH | |
Audio output | 2analog output | |
Video formats | PAL/NTSC | |
Video compression | H.264/H.265 | |
Video resolution | 1080P/720P/960H/D1/CIF | |
Audio formats | G.711A G.711U G.726 | |
Video and playback | Storage | HDD & SD card |
Video query | Search by channel, video type | |
Video playback | Local Multichannel | |
Software upgrade | Local backup | Support SD card and USB flash drive |
Upgrade mode | Manual upgrade, automatic upgrade, remote upgrade | |
Upgrade way | USB , SD card, network | |

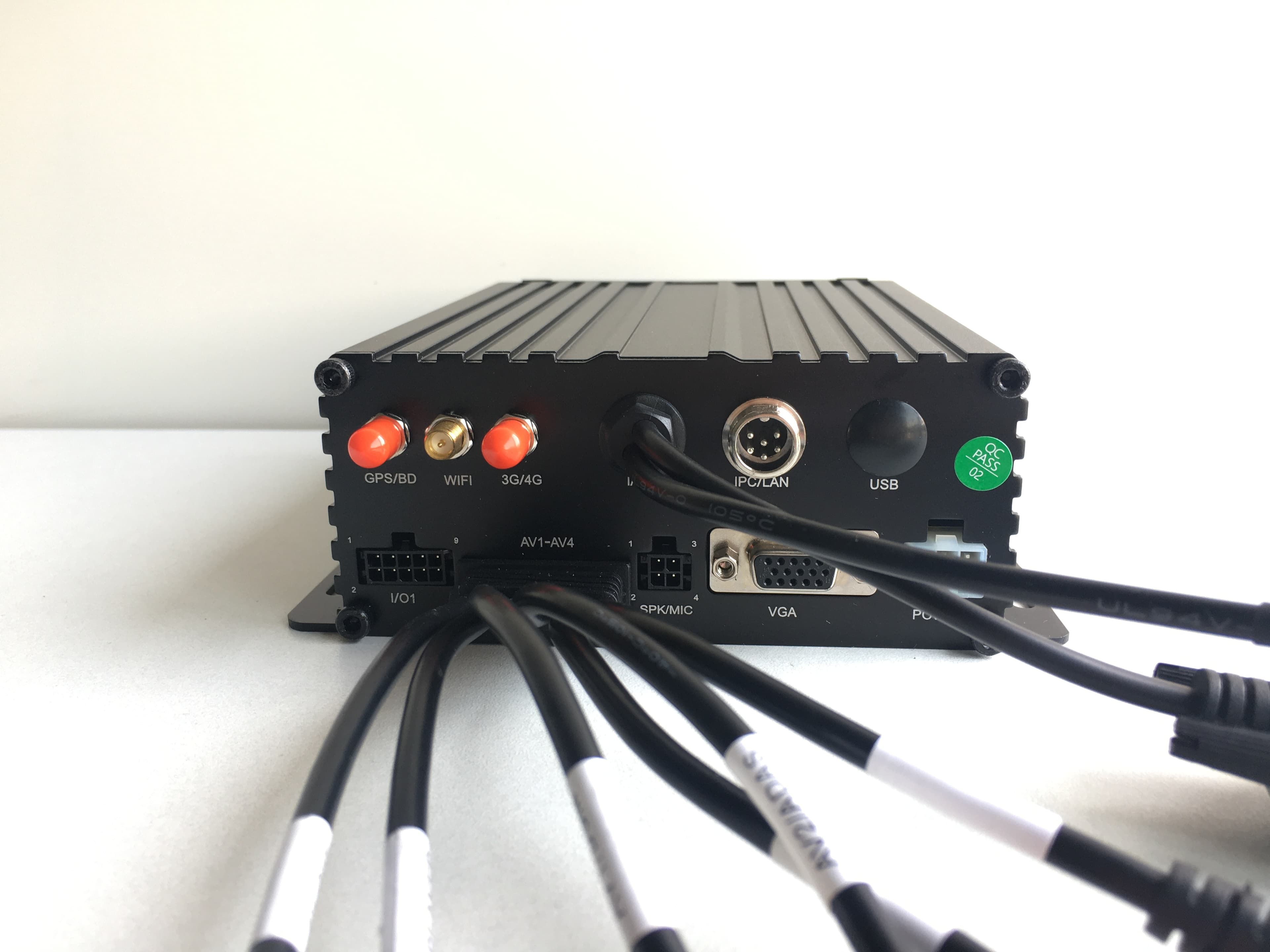

Physical interface | Audio/Video input | 5 h 4CH M12 |
Audio/Video output | 1 VGA and 1 CVBS(Or AHD) | |
Power interface | Power/Ignition signal | |
Alarm input | 9 CH input | |
Alarm output | 2 outputs | |
Pulse | 1 | |
RS232 | 1 | |
TTL | 1 | |
RS485 | 1 | |
CAN | 1 | |
1-WIRE | 1 | |
MIC/SPK | 4PIN MIC/SPK | |
LED light | PWR/RUN | |
IPC | 1 M12-6Pin | |
SD card | 1* SDXC | |
HDD | 1 | |
Disk lock | 1 | |
Wireless interface | GNSS module | GPS/BD/GLONASS |
Wifi | 2.4GHz | |
3G/4G/5G | 4G Default (5G Optional) | |
Active safety interface | ADAS interface | 1 CH ADAS, 1080P/720P |
DSM interface | 1 CH DSM, 720P | |
BSD interface | 1 CH BSD, 1080P/720P | |
Other | Power input | DC9V- 36V |
Storage capacity | 1080P 622MB/H/CH H.265 1080P 1.2G/H/CH H.264 | |
Typical power consumption | Power consumption: AVG 9W (excluding peripherals) Static power consumption: 12V@3mA | |
Load capacity | Camera + Screen: 12V@4A (MAX) IPC: 12V@1A(MAX) |
