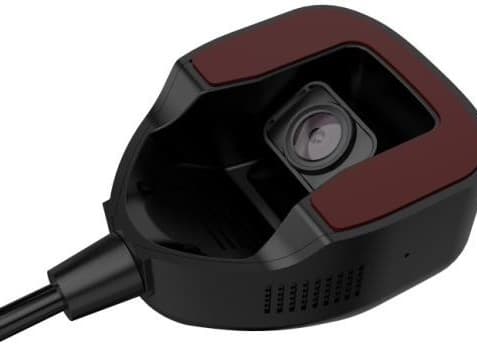

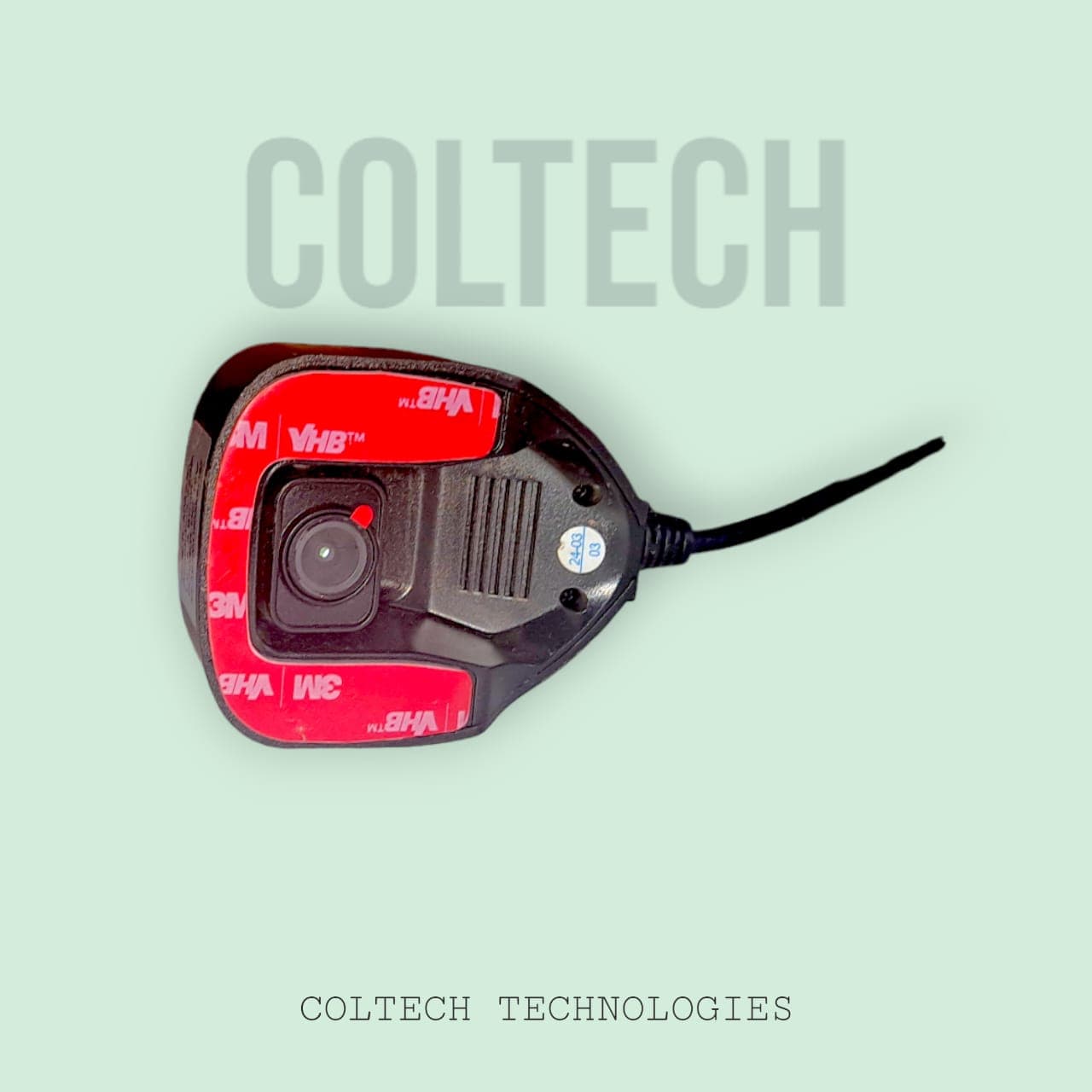

COLTECH ADAS Camera
The CT-TL-DMS-S2 Camera is a Full HD 720P camera designed for Driver Monitoring System (DMS) applications. Featuring a 130W CMOS Image Sensor and an 85° diagonal field of view, it delivers high-quality image capture with WDR (Wide Dynamic Range) for clear visibility across various lighting conditions. This camera ensures reliable performance in vehicle safety systems, ideal for monitoring driver behavior.
📦 Package Includes:
- ✓ -Channel MDVR Unit
Specifications
Documents & Downloads
Description
Parameters
Specifications | Model | TL-ADAS-S5 |
Name | ADAS Camera | |
Image Sensor | 130W CMOS Sensor | |
Pixel Size | 3.75μm x 3.75μm | |
Optical Format | 1/3" | |
Image color | Color | |
Focal Length | 3.6 mm | |
IR | NA | |
View Angle | D=85° H=60° V=53° | |
Signal Type | PAL | |
FPS | 25fps | |
Properties | Temperature | -25℃~75℃ |
Humidity | ≤ 90 % | |
Voltage | 12V DC | |
Rated power | 0.8W | |
Cable Length | Aviation connector, 2.5m |
