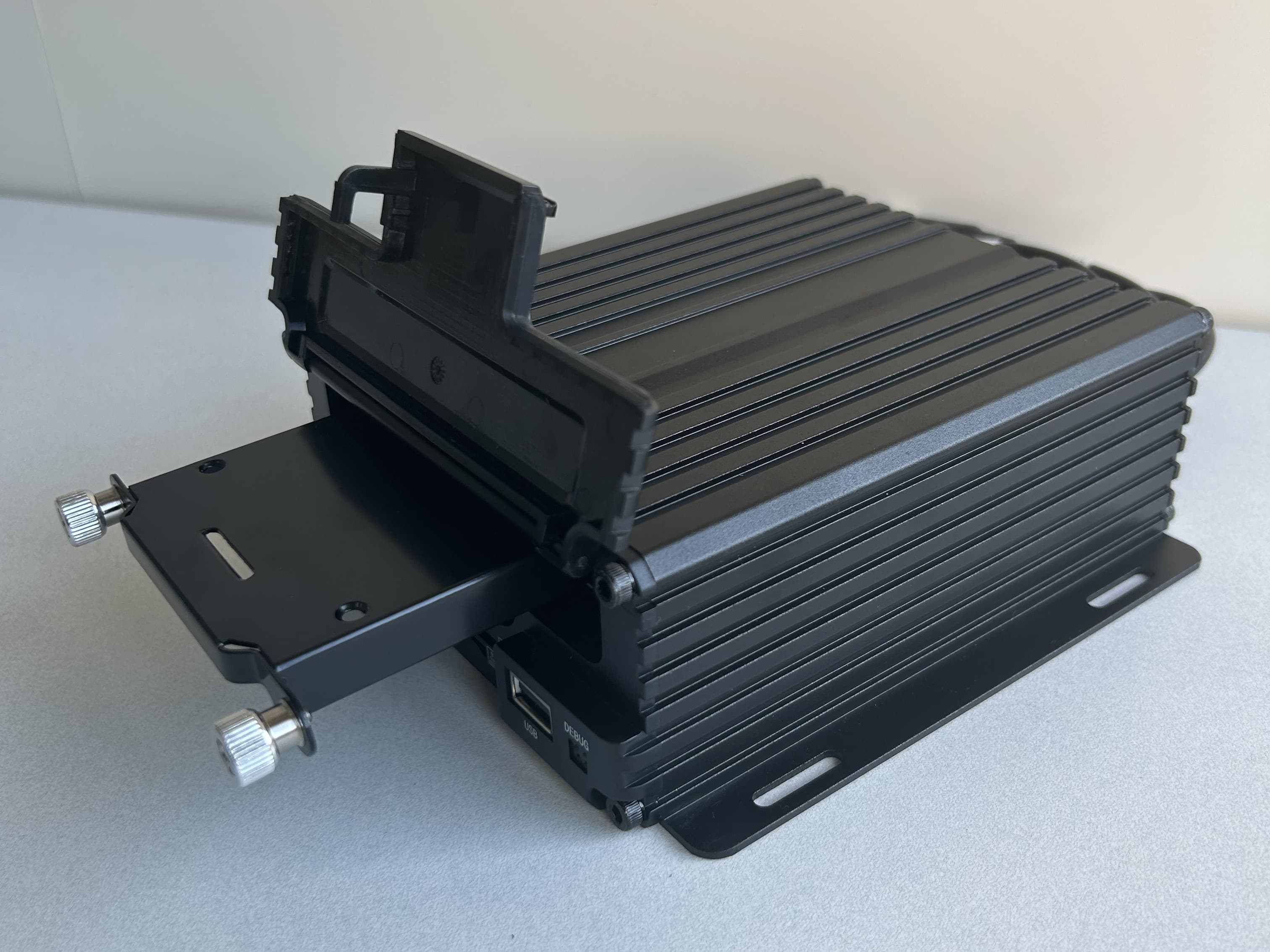

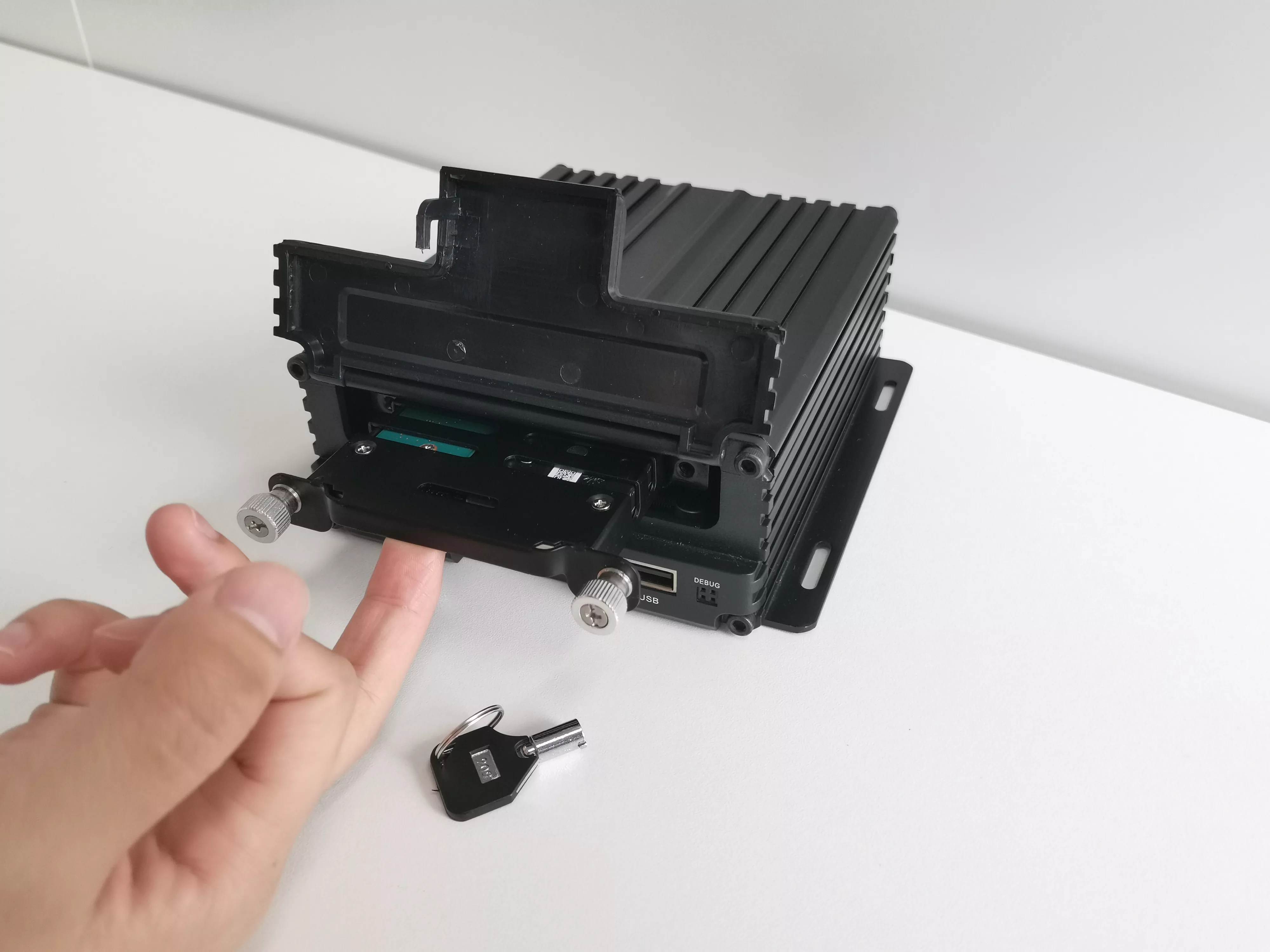

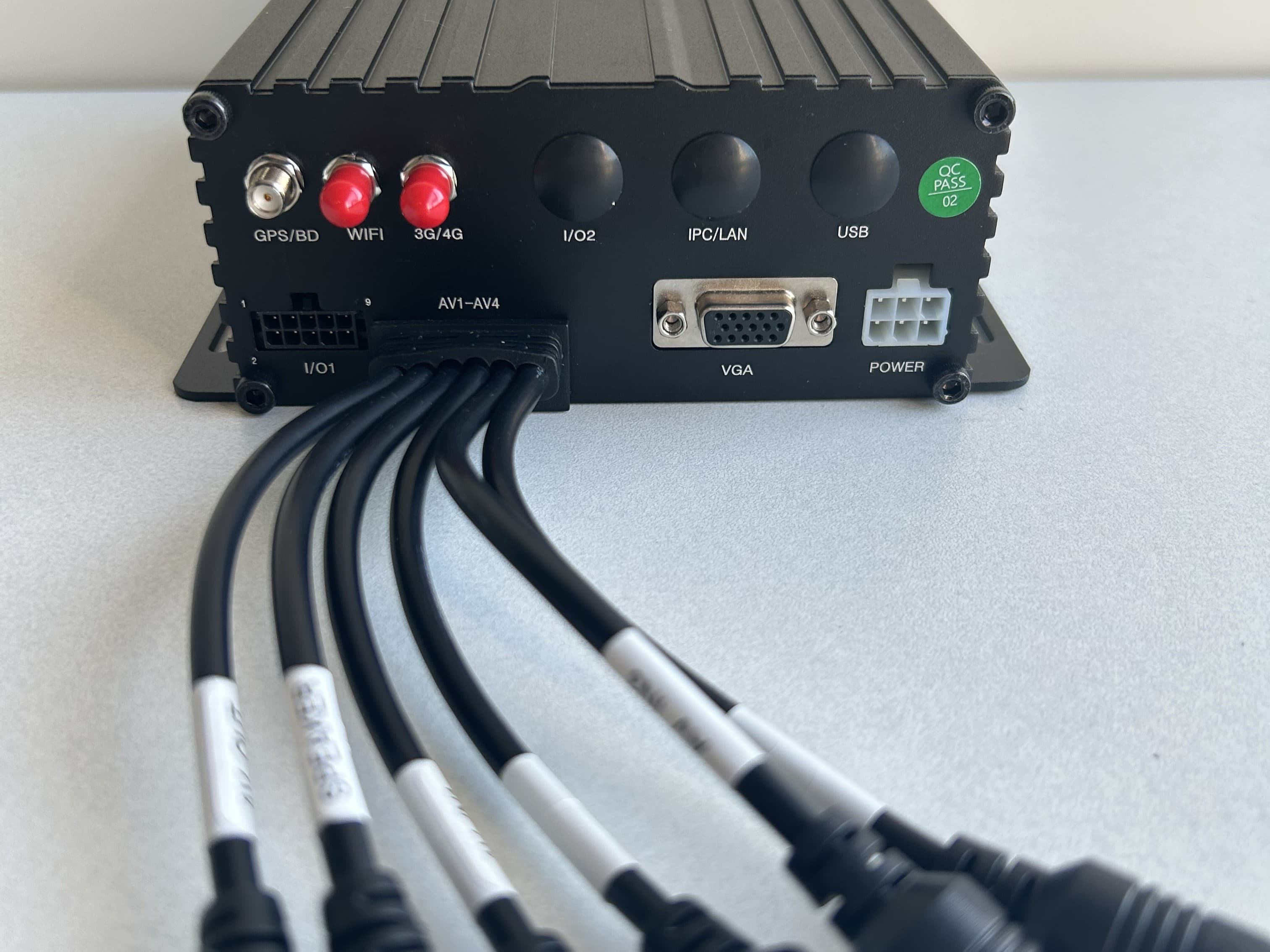

Standard 4 CH MDVR with Hard drive and SD card storage MDVR
The 4-Channel MDVR is an affordable mobile video recorder designed for clients seeking basic vehicle surveillance with extended playback and storage capabilities. Ideal for small fleets or town service operations, it offers 4-channel video monitoring for full vehicle coverage and efficient H.265 video compression for optimized storage. This system supports both hard disk and SD/memory card for longer video retention, while real-time GPS tracking enables effective fleet management. It's a cost-effective solution for those who do not require AI-powered features but still need reliable surveillance and storage.

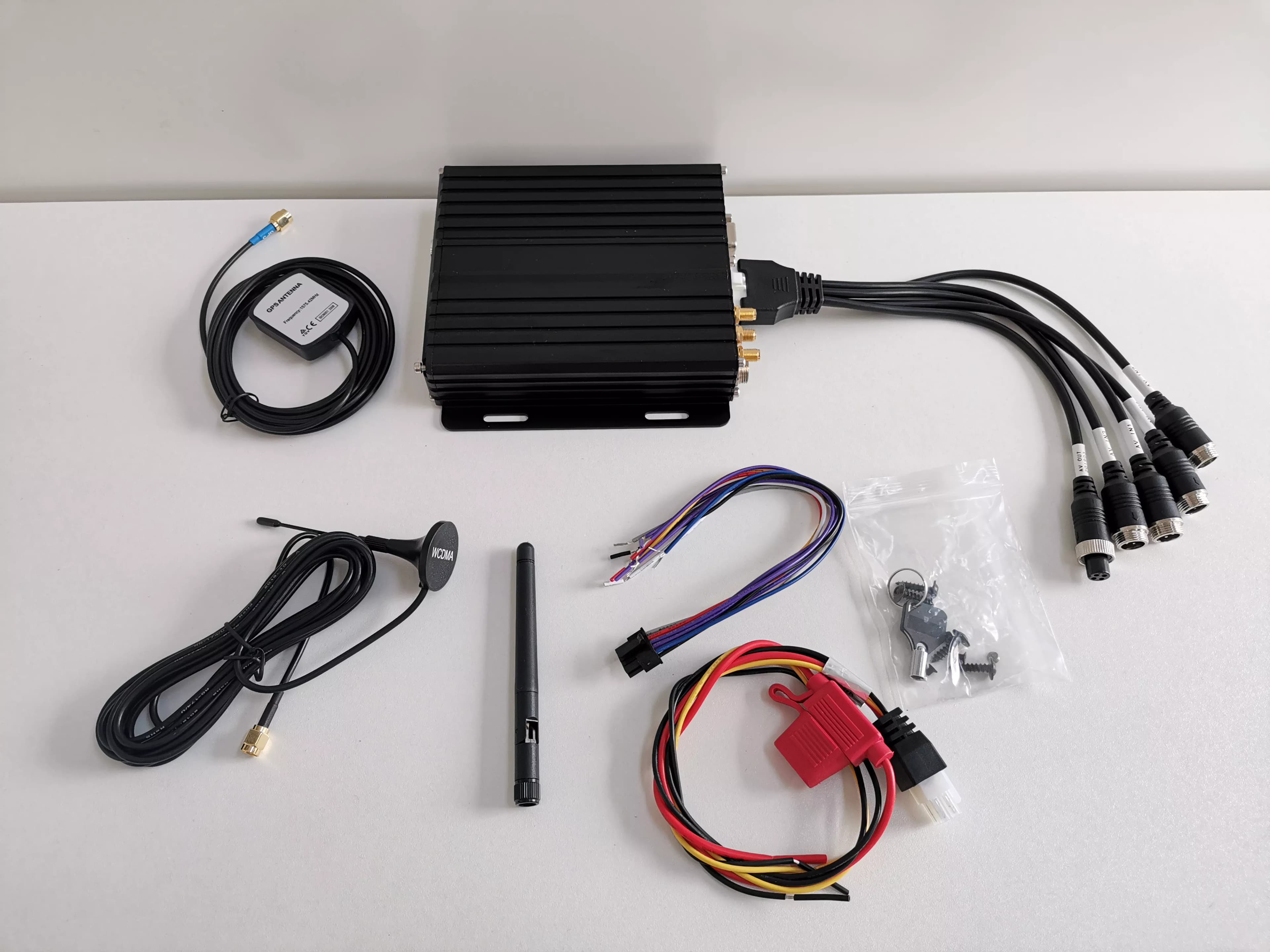

Included in the Box:
4-Channel MDVR Black Box
Power Cord
Product Use Manual
Speaker
I/O Port Cord
WAN Extension Cable
📦 Package Includes:
- ✓ 4-Channel MDVR Unit
- ✓ FREE 12-month NON-AI License
Specifications
- General:
- Model: CT9704C‑B3 System: Embedded Linux OS Operating Interface: GUI with mouse support Language Support: Chinese / English Security: User/Admin password protection
Description
Technical Specifications
Feature | Specification |
|---|---|
System | Embedded Linux Operating System |
Video Inputs | 4CH AHD/TVI/CVI/Analog |
Video Compression | H.264/H.265 |
Storage | Supports 512GB SD Card, Up to 2TB HDD |
GPS Module | GPS/BD/GLONASS (high sensitivity, fast positioning) |
Power Supply | 8-36V DC Wide Voltage Range |
Video Output | 1 CH VGA, 1 CH CVBS AV |
Audio | G.711A, G.711U, G.726 |
Storage Media | SD card + HDD/SSD |
Transmission Interface | 4G/LTE, WiFi (optional), GPS, Ethernet |
Power Consumption | 6.24W average (excluding peripherals) |
Working Temperature | -20°C to 70°C |
Dimensions | 162mm × 153mm × 52mm |
Video Resolution | 1020P, 960H, D1, CIF |
Recording Quality | Class 1-6 Optional |
Firmware Upgrade | Manual/Automatic/Remote |
