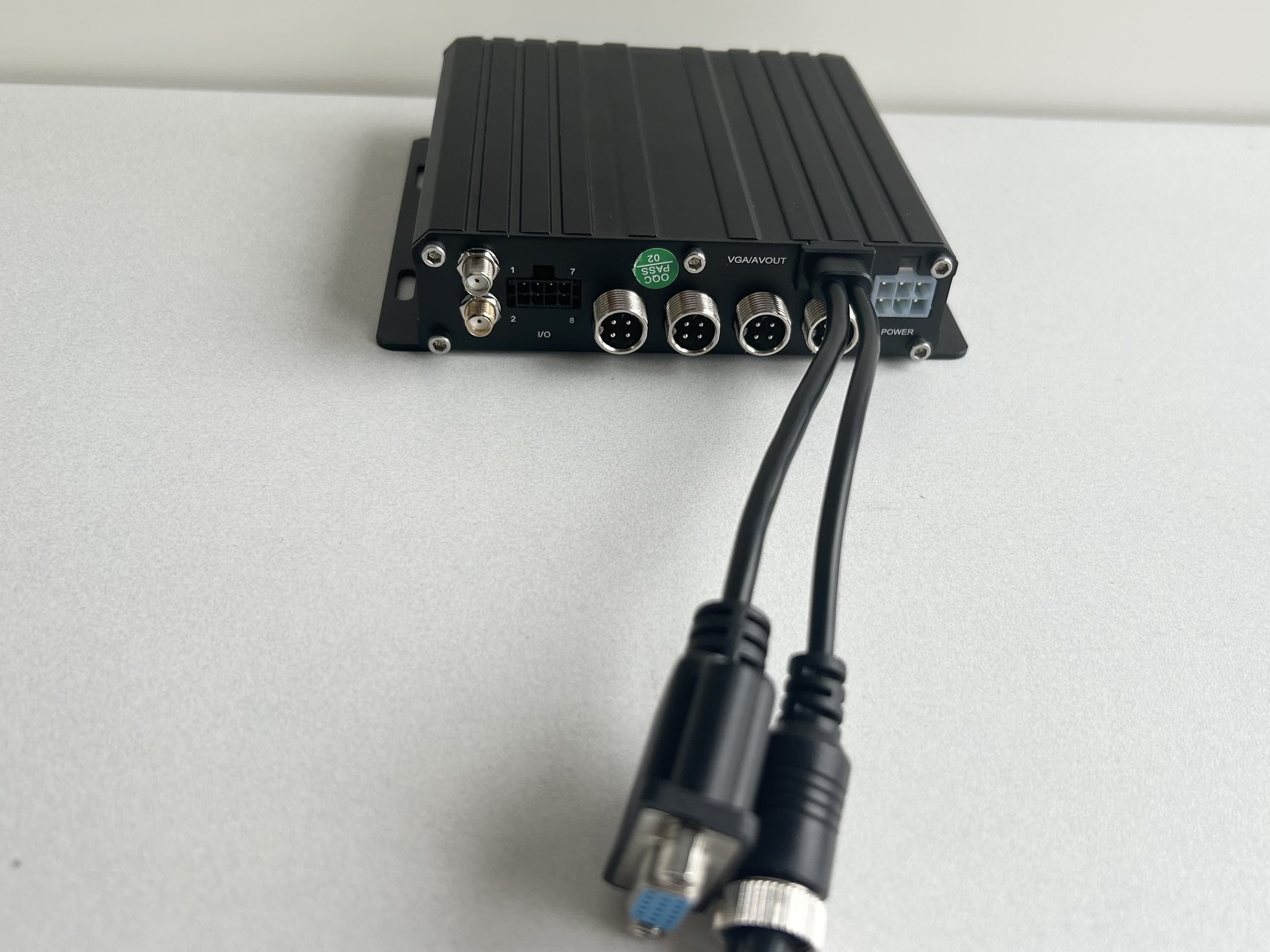

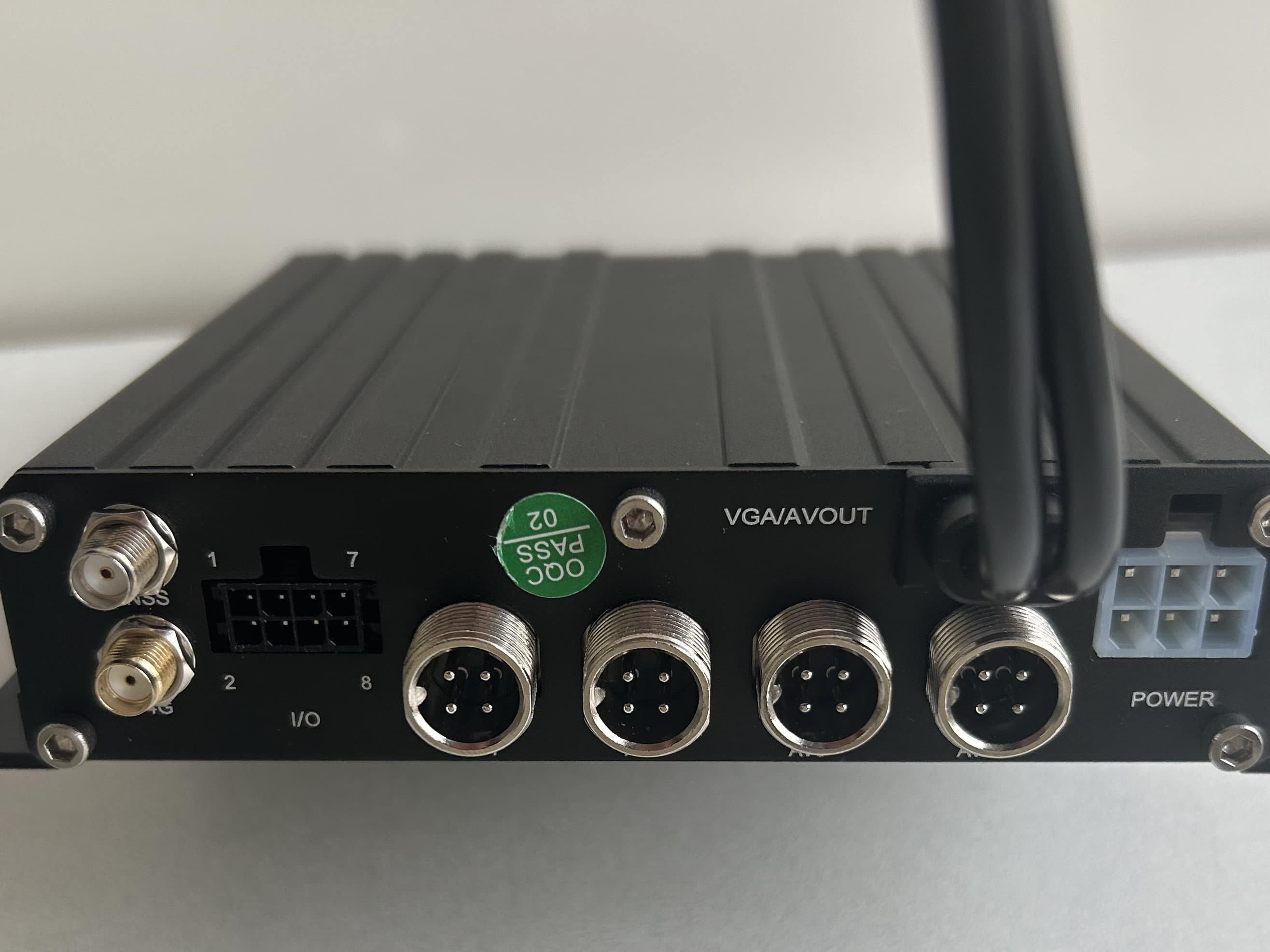

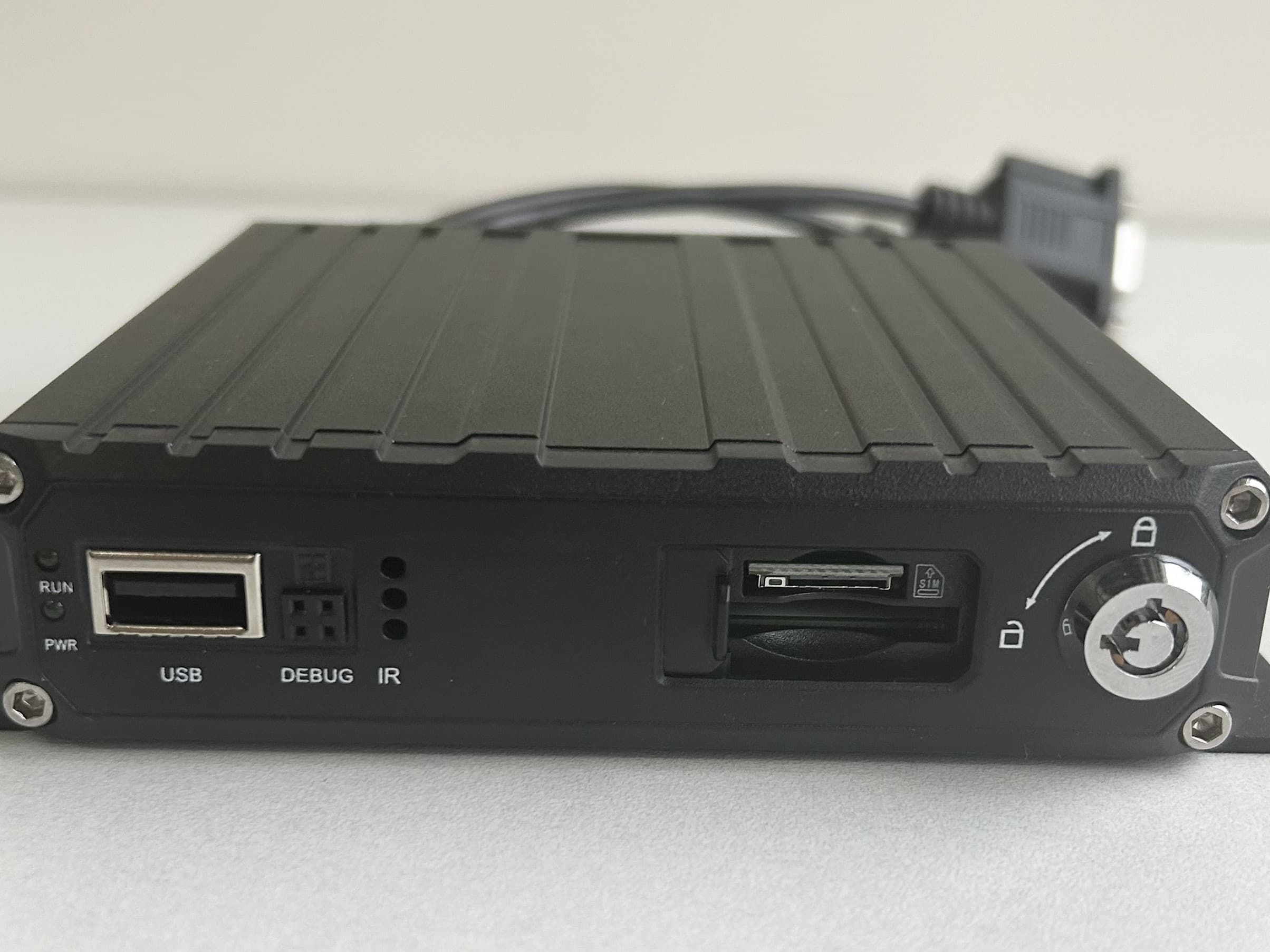

Economy 4-Channel SD Mobile MDVR
The MR_9504EC_V2 4-Channel AHD SD Mobile DVR is an affordable, reliable, and simple fleet surveillance solution. With 4 high-definition video channels, real-time GPS tracking, and secure SD card storage, this system provides full vehicle monitoring without the need for expensive AI features. It is perfect for Kenyan fleet operators in industries such as PSV, logistics, and school transport, who need basic monitoring with cost efficiency.
"Recommended for clients who need an economic telematics solution but are not interested in extended storage liability"

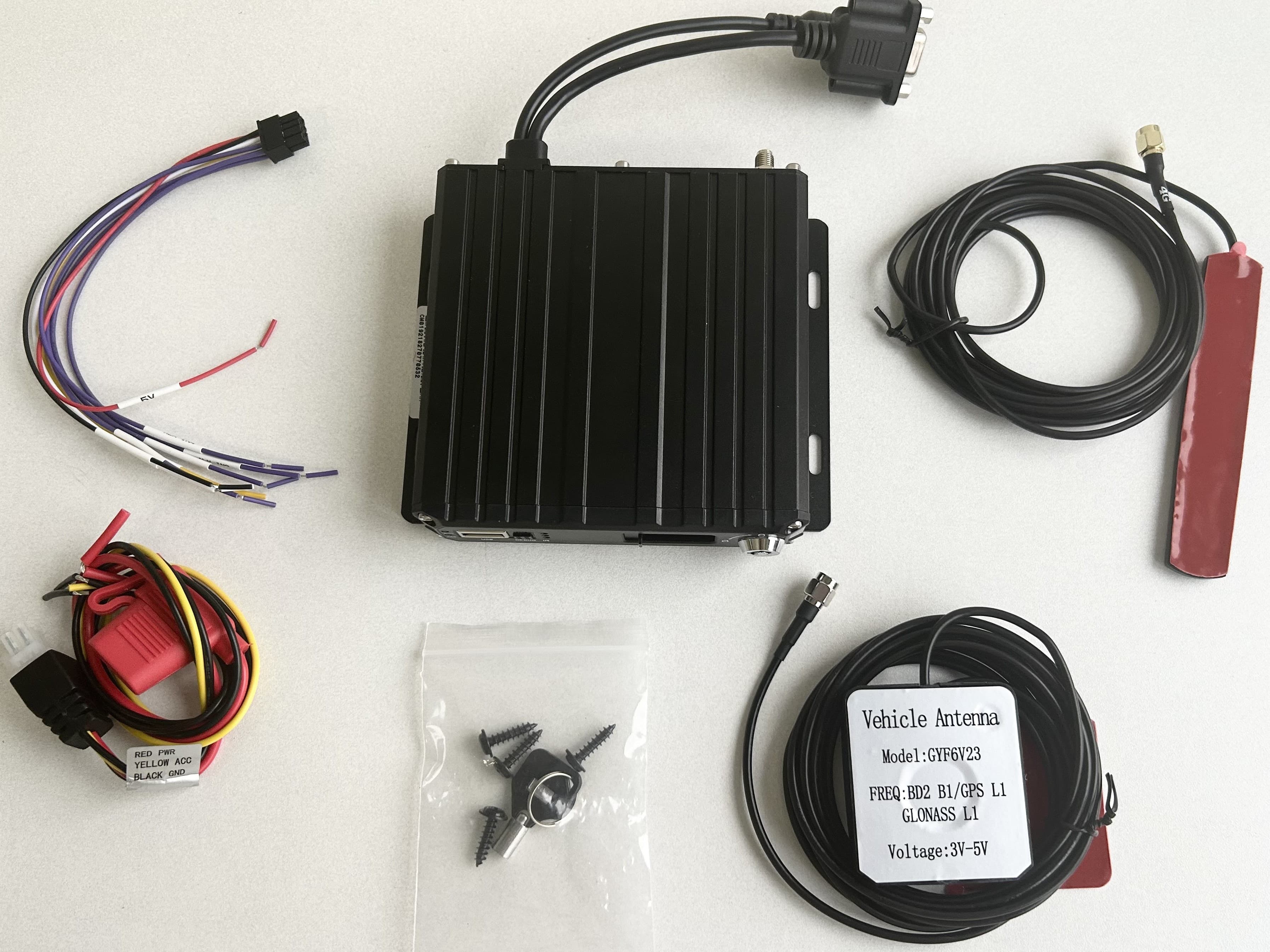

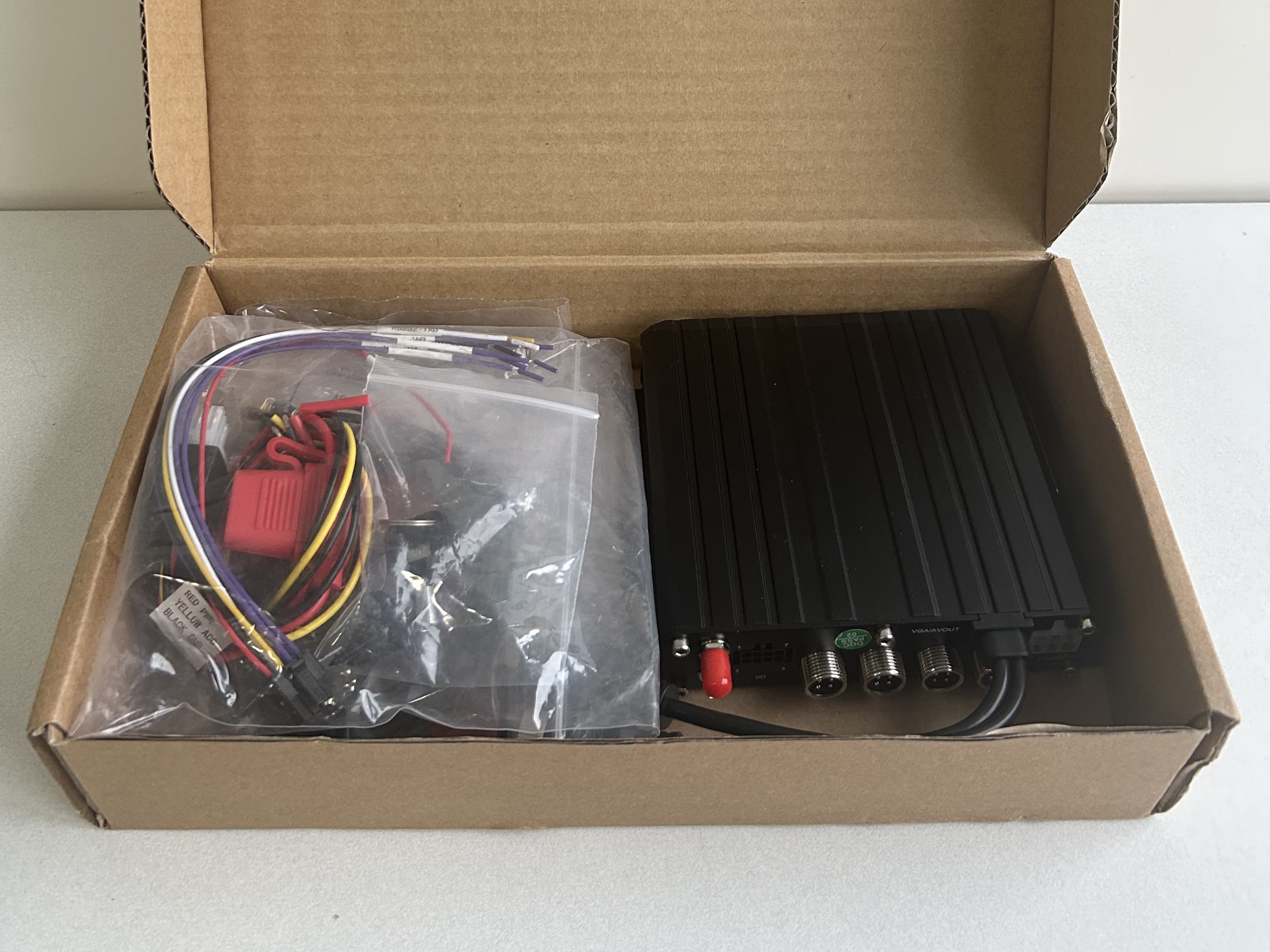

What’s Included in the Box:
MR9504EC_V2 4-Channel AHD SD Mobile DVR Black Box
Power Cord
I/O Port Cord
GPS Antenna
3G/4G Antenna
User Manual
📦 Package Includes:
- ✓ 4-Channel MDVR Unit
- ✓ FREE 12-month NON-AI License
Specifications
Documents & Downloads
Description
Technical Specifications
Feature | Specification |
|---|---|
System | Embedded Linux Operating System |
Operating Language | Chinese/English |
Video Inputs | 4CH AHD/TVI/CVI/Analog |
Video Compression | H.265/H.264 |
Video Storage | Supports 512GB SD Card |
GPS Module | GPS/BD/GLONASS (high sensitivity, fast positioning) |
Power Supply | 9-36V DC Wide Voltage Range |
Video Output | 1 CH VGA, 1 CH CVBS AV |
Audio Compression | G.711A, G.711U, G.726 |
Storage Media | SD card storage |
Transmission Interface | 4G/LTE, WiFi (optional), GPS, Ethernet |
Power Consumption | Standby: 4mA/12V; Average: 5.16W (excluding peripherals) |
Operating Temperature | -20°C to 70°C |
Dimensions | 142mm × 152mm × 33mm |
Recording Quality | Class 1-6 Optional |
Firmware Upgrade | Manual/Automatic/Remote |
Executive Summary
The MR_9504EC_V2 4-Channel AHD SD Mobile DVR is an affordable, reliable, and simple fleet surveillance solution. With 4 high-definition video channels, real-time GPS tracking, and secure SD card storage, this system provides full vehicle monitoring without the need for expensive AI features. It is perfect for Kenyan fleet operators in industries such as PSV, logistics, and school transport, who need basic monitoring with cost efficiency.
