Premium 8CH AI with Hard drive and SD card storage MDVR

The MA9708E 8-Channel AI MDVR is a state-of-the-art mobile video recorder designed for Kenyan fleet operators, offering superior surveillance and safety monitoring. It supports 8 camera channels for comprehensive vehicle monitoring, with one ADAS camera for forward collision warnings and one DMS camera for driver fatigue and distraction detection. This system also includes up to 4TB of storage for secure video retention and high-efficiency video compression, ensuring long-term evidence storage and regulatory compliance. Additionally, the two dedicated IP camera ports enable future-proof expansion and integration with advanced vehicle sensors, making it an ideal choice for logistics, PSV, school transport, and high-value asset transport fleets in Kenya.

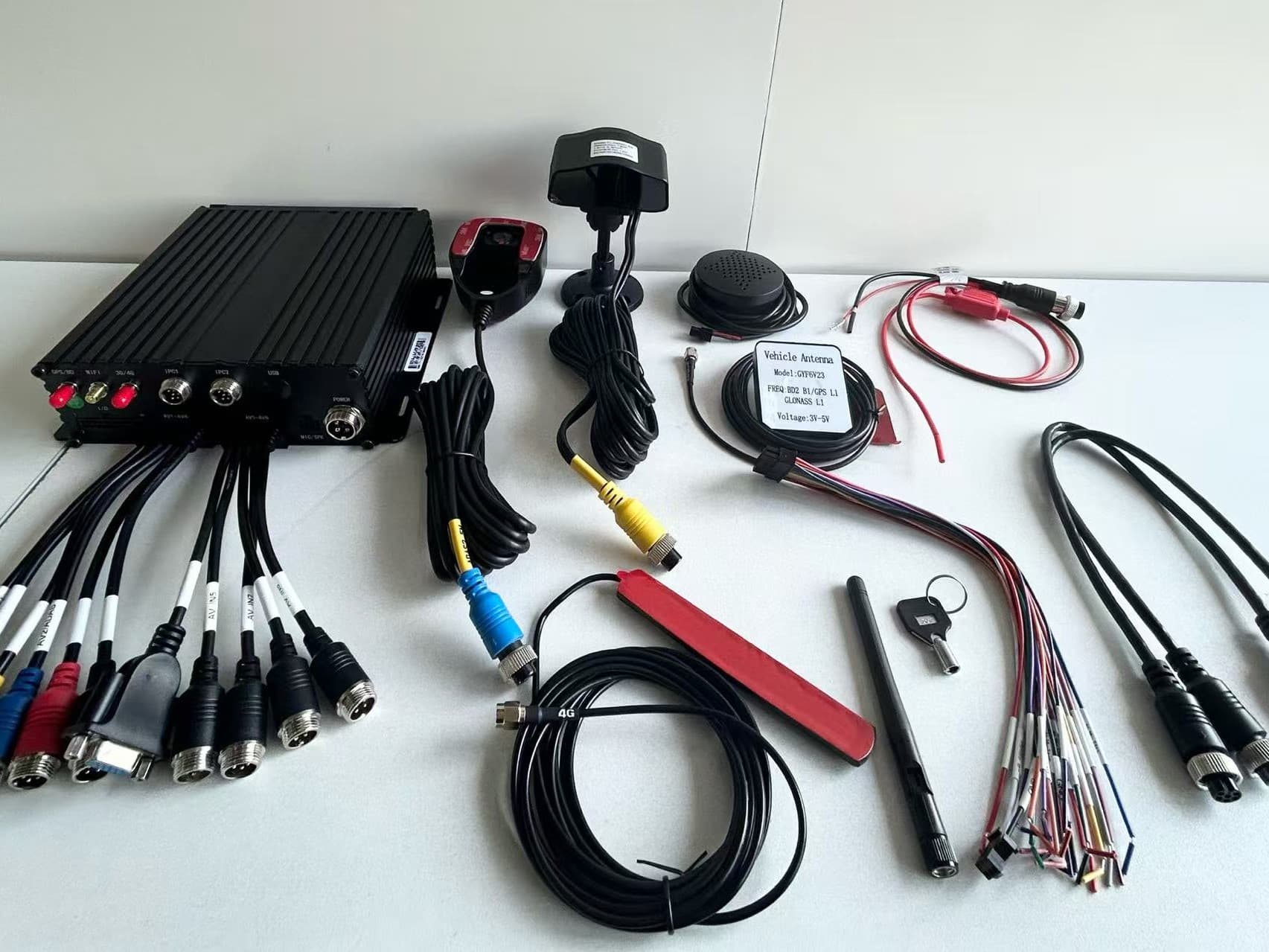

Included in the Box:

8-Channel AI MDVR Black Box
1 × ADAS Camera (Forward Collision Warning)
1 × DMS Camera (Driver Monitoring)
Power Cord
Product Use Manual
Speaker
I/O Port Cord
WAN Extension Cable

KES 43,734

In Stock(8 available)

📦 Package Includes:

✓ 8-Channel MDVR Unit
✓ FREE 12-month AI License

Quantity:

Specifications

Storage:: SD Card: Supports up to 512 GB SD HDD/SSD: Supports 2 TB HDD or SSD
Power & Environmental:: Power Supply: DC 8–36 V Intelligent Power Management: Supports low‑voltage auto shutdown and power protection
Video specifications :: Video Resolution: Up to 1920 × 1080 (Full HD) Video Inputs: 8 channels for AHD/TVI/CVI/CVBS cameras 2 channels for IPC (network/IP cameras) Video Output: VGA + CVBS Video Compression: H.265 (efficient high-quality compression) Scanning System: Progressive scanning
Connectivity & Network:: Built‑in GPS/BD/GLONASS for precise positioning Built‑in 4G Module (supports LTE/HSPA/WCDMA) for remote data transmission Optional Wi‑Fi Module: Supports 802.11b/g/n (2.4 GHz)
AI & Monitoring Features:: AI Functions: ADAS (Advanced Driver Assistance System) DSM (Driver Status Monitoring) Optional BSD (Blind Spot Detection) Built‑in G‑sensor for detecting vehicle movement/behavior

Documents & Downloads

01KJV2PMQNHKENJRJW9Q1EQA2S.pdf

Description

Parameters:

Technical parameter:
Item	Device parameter	Performance
system	System	Embedded Linux operating system
	Language	Chinese/English Etc...
	Interface	Graphical menu operation interface, mouse operation
Audio and video	Video input	8 CH 1080P AHD/TVI/CVI/CVBS
	Video output	VGA+CVBS
	Audio input	8 CH
	Audio output	1 channel analog output
	Video formats	PAL/NTSC
	Video compression	H.264/H264+/H.265/H265+
	Video resolution	1080P/720P/960H/D1/CIF
	Video quality	Grades 1 to 6
	Audio formats	G711A、G711、G.726、MG.726、ADPCM、IMA
Video and playback	Storage	HDD/SSD& SD
	Video query	Search by channel, video type and alarm type
	Video playback	Local 4 CH
	Local backup	Supports SD cards and USB drives
Physical interface	Upgrade mode	Manual upgrade, automatic upgrade, remote upgrade
	Upgrade way	USB , SD card, network
	Audio/Video output	1ch VGA video output, 1ch M12 aviation/4PIN CVBSAV output
	Power interface	Power/ignition signal
	Alarm input	7ch inputs (Positive/Negative trigger optional)
	Alarm output	2ch outputs, could drive relay(＜150mA)
	ADC input	4ch
	The speed pulse	1
	RS232	2
	TTL	1
	RS485	1
	CAN	1
Other interface	LED light	PWR/RUN
	HDD/SSD interface	1* SATA interface, 2.5inch HDD/SSD
	SD card	1*SDXC card slot, support max 512 GB storage,
	IPC	2*6 Pin M-12 aviation interface
	Disk lock	1
The wireless interface	GNSS	GPS/BD/GLONASS
	Wifi	Optional WIFI module, support 802.11b/g/n, 2.4GHz
	3G/4G	1*SMA,LTE/HSPA/WCDMA,4G module, support all 4G frequency band
Active safety interface	ADAS interface	1CH ADAS video input,1080P/720P(AV21)
	The DSM interface	1CH DSM video input,1080P/720P(AV1)
	BSD interface	Optional 1CH BSD video input,1080P/720P(AV3)
other	The power input	DC: 8V~36V
	Typical power consumption	Power consumption: AVG 22W (excluding peripherals)
	Power output	5V@500mA
	Working Temperature	-20 --- 70℃
	Storage capacity(H.265)	1080P 0.726G/H/Channel
