AHD Dome Camera Interior Camera with audio

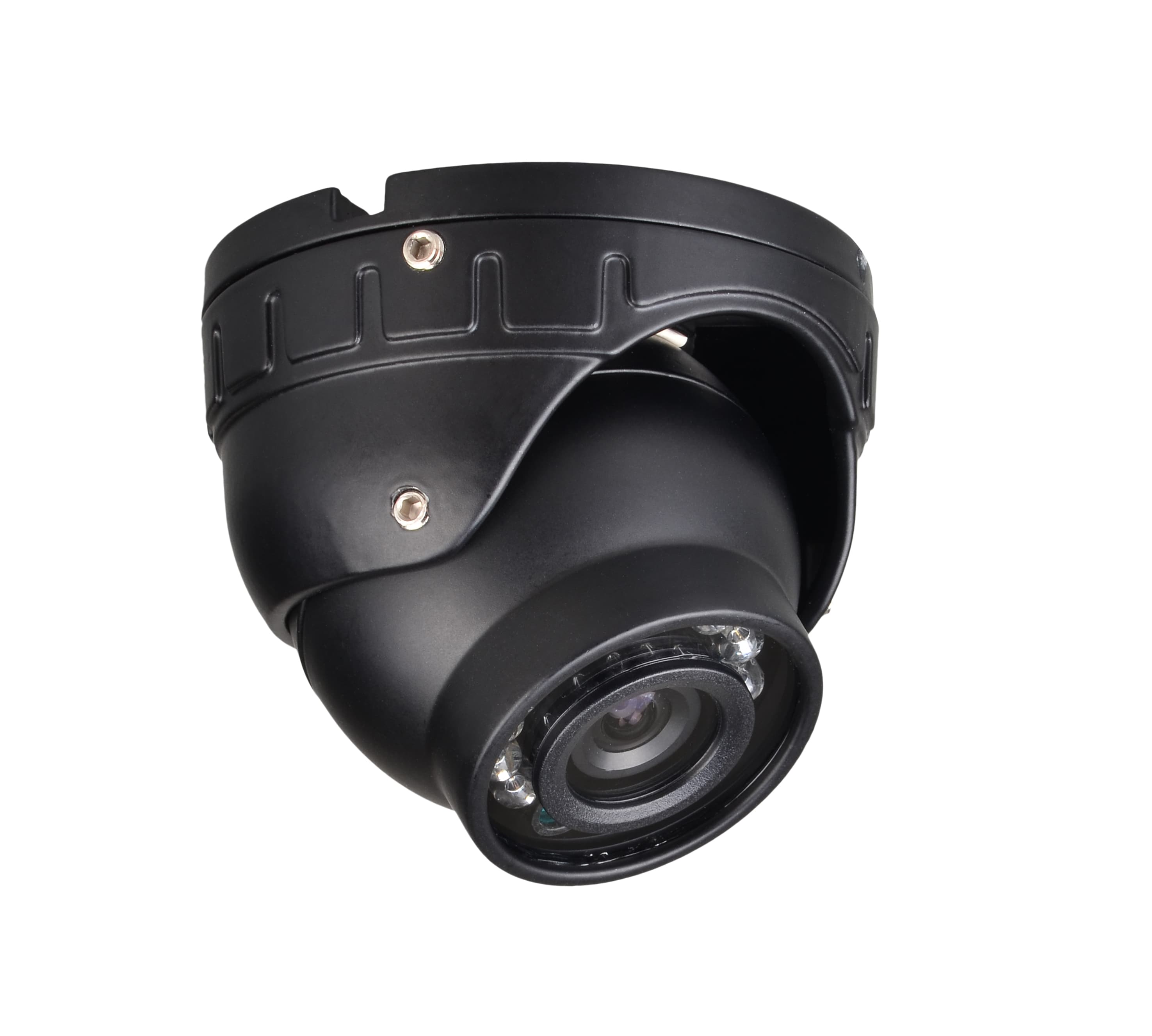

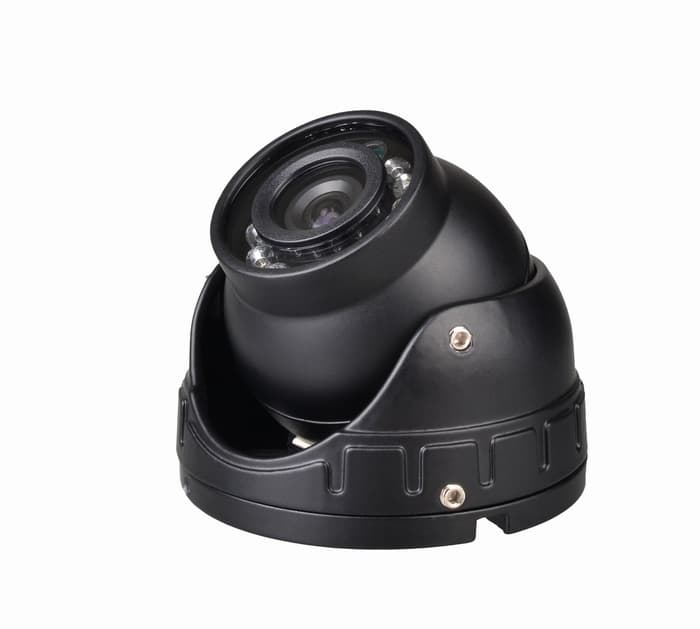

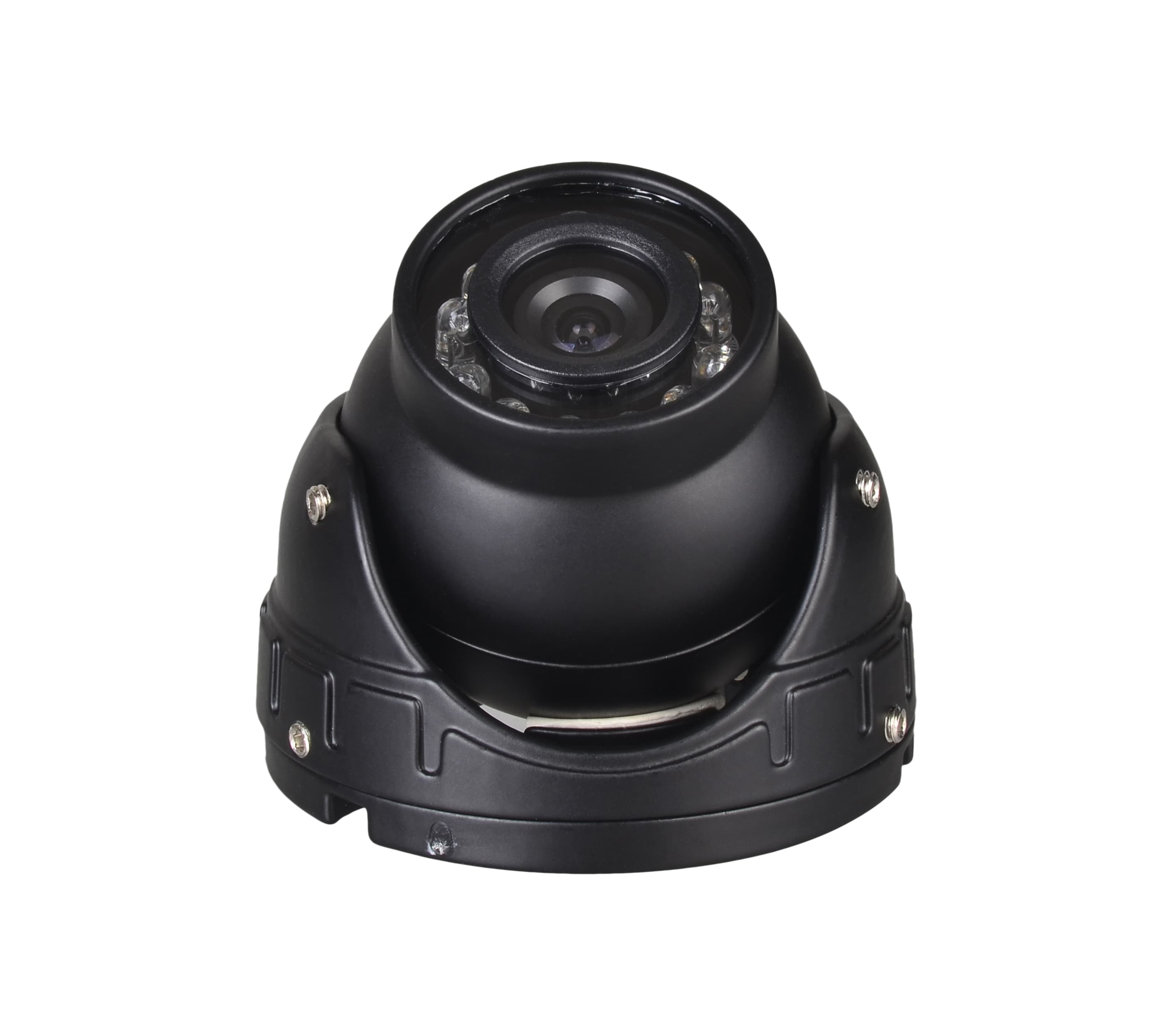

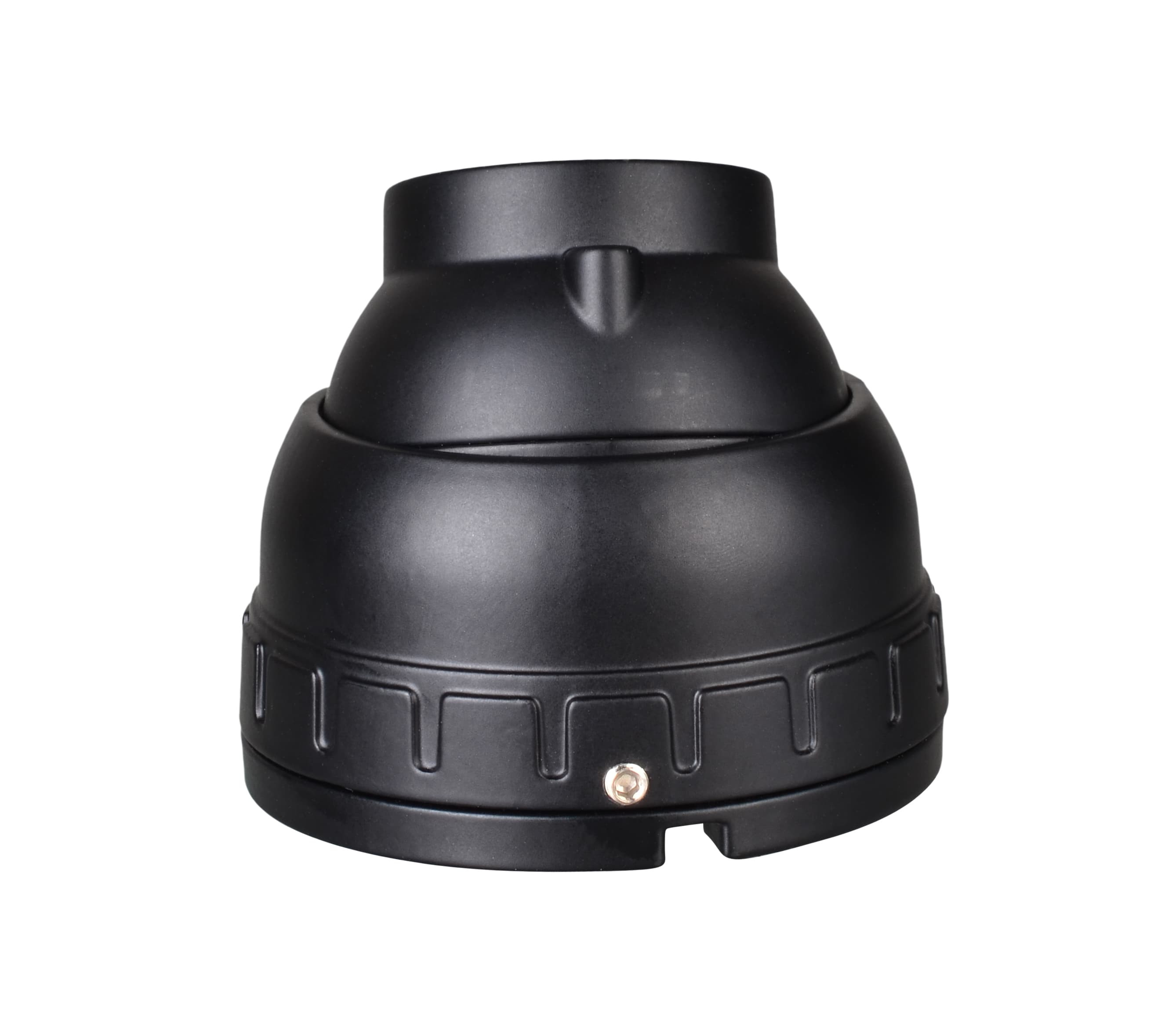

HDC-A120 AHD Dome Camera
High-Definition Dome Camera for Reliable Surveillance
The HDC-A120 AHD Dome Camera is a high-quality, compact surveillance camera designed for security applications where reliable day/night monitoring and clear video resolution are essential. Equipped with a 2.0MP CMOS sensor, the camera provides 1080P recording at 1920×1080 resolution. With features like adaptive 2D/3D noise reduction, intelligent IR-CUT, and infrared night vision, the HDC-A120 ensures clear video footage even in low-light conditions. Its metal housing provides durability, while the built-in HD microphone offers audio recording for enhanced security surveillance.
Key Features:
Original 1080P CMOS Sensor for high-definition video
Adaptive 2D/3D noise reduction for clear visuals in low-light conditions
Infrared night vision with 12 infrared lamps and 5 meters IR view distance
Built-in HD microphone for audio recording
📦 Package Includes:
- ✓ -Channel MDVR Unit
Specifications
Documents & Downloads
Description
Technical Specifications
Feature | Specification |
|---|---|
Model | HDC-A120 |
Image Sensor | 1/2.9” GC2053 CMOS Sensor |
Resolution | 2.0MP (1920×1080P) |
Minimum Illumination | 0.01Lux, 0 Lux with IR |
Night Vision | Yes (12 infrared lamps, 5m IR view distance) |
Audio | Built-in HD microphone for audio recording |
Lens Type | M12 |
SNR | ≥42dB |
Protection Grade | IP66 (weatherproof, dustproof) |
Operating Temperature | -20°C to 70°C |
Relative Humidity | ≤90% |
Connector | 4 PIN aviation connector |
Power Supply | DC12V |
Power Consumption | Rated 2.5W (IR open) |
Dimensions | φ65 (Bottom diameter) * 57 mm |
